Overview

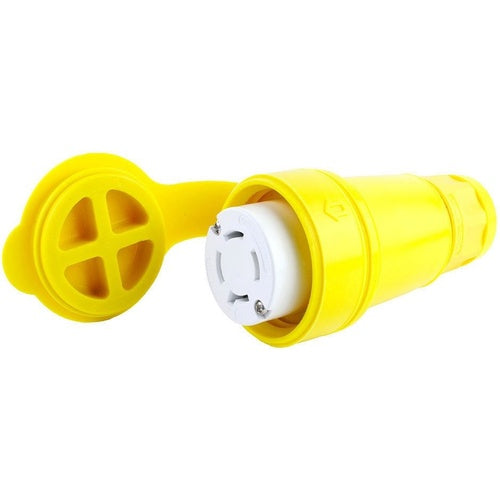

Woodhead 29W77 1301470111 Watertight Connector 4P 4W L17-30

Product Specifications

• UPC: 78678871336
• Number Of Poles: 3
• Number Of Wires: 4
• Material: NEoTEX Paracril OZO Rubber
• Color: Yellow
• Cord Size: 0.437 to 1.1 Inch
• Approval: UL, CSA
• Additional Information: Application Wet Location; Enclosure Type IP67; Cord Grip Body Size 1 Inch F4; Temperature Rating -40 to 75 Deg C
• Catalog Number: 29W77
• Brand Name: Watertite[R]
• Model: 130147
• Type: Polarized
• Constructional Feature: Watertight, Chemical Resistant, Abrasion Resistant, Vapor Resistant
• Configuration: L17-30R
• Voltage Rating: 600 V 3-Phase
• Current Rating: 30 Ampere
• Catalog Description: WATERTITE CONNECTOR WITH LOCKING BLADE, 3 POLE/4 WIRE, NEMA L17-30, 3 600V, CORD GRIP BODY SIZE F4
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Neotex Paracril Ozo Rubber Material; Yellow Color; L17-30R Configuration; 4 Wire(S); UL, CSA Approval; 600 V 3-Phase Voltage Rating; 30 Ampere Current Rating; 3 Pole(S); Watertight, Chemical Resistant, Abrasion Resistant, Vapor Resistant; 0.437 to 1.1 Inch Cord Size; WATERTITE[R] Brand; Application Wet Location; Enclosure Type IP67; Cord Grip Body Size 1 Inch F4; Temperature Rating -40 to 75 Deg C; 130147 Model
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Locking Device Connector
• Unspsc: 39121402
• UPC 12 Digit: 786788713362
• SKU Name: wood 29w77
