Overview

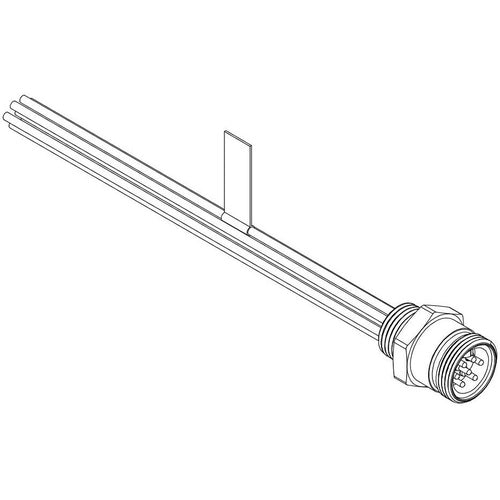

Woodhead 2R7006A20A120 1300140050 7P 7A Male Receptacle

Product Specifications

• UPC: 78678844073
• Current Rating: 8 Amp
• Terminal Type: 16 AWG 12 Inch Pigtail, PVC
• Wire Code: 1-White/Black 2-Black 3-White 4-Red 5-Orange 6-Blue 7-Green/Yellow (Ground)
• Mounting: 1/2 Inch-14 TPI NPT
• Material: Black Epoxy Coated Zinc (Shell), PVC (Connector Face)
• Application: Limit Switch, Photoelectric Sensor, Proximity Switch, Solenoid Operated Valve, Industrial Heater, Commercial and Industrial Lighting
• Enclosure: IP67
• Approval: UL, CSA
• Additional Information: Temperature Rating -20 to 105 Deg C
• Catalog Number: 2R7006A20A120
• Brand Name: Woodhead
• Model: 130014
• Type: Male
• Keyway Type: Single
• Receptacle Type: Straight
• Number Of Poles: 7
• Voltage Rating: 600 Volt AC/DC
• Catalog Description: MINI-CHANGE B-SIZE RECEPTACLE WITH LEADS 1/2" - 14NPT THREADS, STRAIGHT MALE, 7 POLES, LENGTH 0.305M
• Category: Pin & Sleeve Devices
• Full Technical Description: Male Type; Black Epoxy Coated Zinc (Shell), PVC (Connector Face) Material; UL, CSA Approval; Limit Switch, Photoelectric Sensor, Proximity Switch, Solenoid Operated Valve, Industrial Heater, Commercial and Industrial Lighting Application; 600 Volt AC/DC Voltage Rating; 1/2 Inch-14 TPI NPT Mounting; IP67 Enclosure; 8 Amp Current Rating; 7 Pole(S); 16 AWG 12 Inch Pigtail, PVC Terminal Type; Straight Receptacle Type; Single Keyway Type; 1-White/Black 2-Black 3-White 4-Red 5-Orange 6-Blue 7-Green/Yellow (Ground) Wire Code; BRAD[R], MINI-CHANGE[R] Brand; Temperature Rating -20 to 105 Deg C; 130014 Model
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Quick Connect Receptacle
• Unspsc: 39121413
• UPC 12 Digit: 786788440732
• SKU Name: wood 2r7006a20a120

Resources

• Manufacturer Spec Sheet
• Technical Drawing
