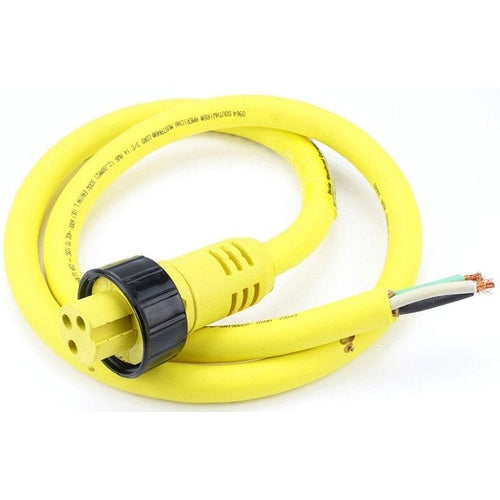

Woodhead 32350 1300000046 600V 20A Cordset Connector

Overview

Woodhead 32350 1300000046 600V 20A Cordset Connector

Product Specifications

• UPC: 78678832350
• Cable Type: 12 AWG, RUBBER JACKET
• Color: YELLOW
• Length: 6 FT
• Length In Ft: 6
• Length In Meters: 1.8288
• Material: BRASS CONTACT, MOLDED NITRILE BODY, THERMOPLASTIC COUPLING NUT
• Application: INDUSTRIAL MOTOR
• Enclosure: NEMA 4/4X/6/6P, IP65/67/68
• Approval: UL, CSA
• Length In Ft Uom: ft
• Catalog Number: 32350
• Length In Meters Uom: m
• Additional Information: ENVIRONMENTAL CONDITIONS CONTAMINANT, DUST RESISTANT, OIL RESISTANT, WATER RESISTANT; OPERATING TEMPERATURE -20 TO 105 DEG C
• Brand Name: QUICK-CHANGE[T]
• Type: FEMALE
• Keyway Type: SINGLE
• Number Of Poles: 3
• Voltage Rating: 600 VAC/VDC V
• Current Rating: 25 AMPERE
• Wire Code: 1-BLACK 2-WHITE 3-GREEN
• Category: Cords Sets
• Full Technical Description: Female Type; Brass Contact, Molded Nitrile Body, Thermoplastic Coupling Nut Material; Yellow Color; 6 ft; 6 Length in ft; 1.8288 Length in Meters; 12 AWG, Rubber Jacket Cable Type; UL, CSA Approval; Industrial Motor Application; 600 VAC/VDC V Voltage Rating; NEMA 4/4X/6/6P, IP65/67/68 Enclosure; 25 Ampere Current Rating; 3 Pole(S); Single Keyway Type; 1-Black 2-White 3-Green Wire Code; QUICK-CHANGE[T] Brand; Environmental Conditions Contaminant, Dust Resistant, Oil Resistant, Water Resistant; Operating Temperature -20 to 105 Deg C; Length in ft - Uom ft; Length in Meters - Uom M
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Quick Connect Cable Assembly
• Unspsc: 31163101
• UPC 12 Digit: 786788323509
• SKU Name: wood 32350
