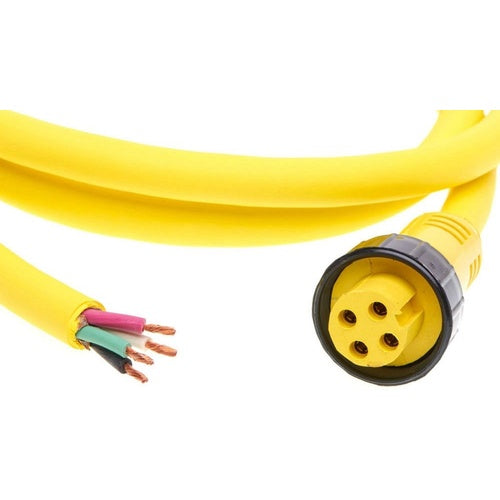

Woodhead 32638 1300000074 600V 12A Cordset Connector

Overview

Woodhead 32638 1300000074 600V 12A Cordset Connector

Product Specifications

• UPC: 78678832638
• Wire Code: 1-Black 2-Green 3-Red 4-White
• Cable Type: Neoprene Jacket, 14 AWG SOW
• Color: Yellow
• Length: 6 Foot
• Material: Nitrile/SBR Molded Body, Thermoplastic Coupling Nut, Nitrile/SBR Plug Face
• Application: Industrial Motor
• Enclosure: NEMA 6P, IP68
• Approval: UL, CSA
• Additional Information: Temperature Rating -4 to 221 Deg F; Outer Diameter 0.62 Inch
• Catalog Number: 32638
• Brand Name: Woodhead
• Type: Female
• Keyway Type: Single
• Connector Type: Single End
• Number Of Poles: 4
• Voltage Rating: 600 Volt AC/DC
• Current Rating: 15 Amp
• Catalog Description: QUICK-CHANGE SINGLE-ENDED CORDSET, 4 POLES, FEMALE (STRAIGHT) TO PIGTAIL, 14 AWG, CPE CABLE, 1.83M (6.0' ) LENGTH
• Category: Cords Sets
• Full Technical Description: Female Type; Nitrile/Sbr Molded Body, Thermoplastic Coupling Nut, Nitrile/Sbr Plug Face Material; Yellow Color; 6 Foot; Neoprene Jacket, 14 AWG SOW Cable Type; UL, CSA Approval; Industrial Motor Application; 600 Volt AC/DC Voltage Rating; Single End Connector Type; NEMA 6P, IP68 Enclosure; 15 Amp Current Rating; 4 Pole(S); Single Keyway Type; 1-Black 2-Green 3-Red 4-White Wire Code; QUICK-CHANGE[R] Brand; Temperature Rating -4 to 221 Deg F; Outer Diameter 0.62 Inch
• Made In Usa: Yes
• Manufacturer: WOODHEAD/AERO-MOTIVE/BRAD HARRISON/DANIEL WOODHEAD
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Quick Connect Cable Assembly
• Unspsc: 39121413
• UPC 12 Digit: 786788326388
• SKU Name: wood 32638
