Woodhead 32680 1300030051 600V 20A Receptacle Connector

Overview

Woodhead 32680 1300030051 600V 20A Receptacle Connector

Product Specifications

• UPC: 78678832680
• Terminal Type: 12 AWG 12 Inch Pigtail, PVC
• Wire Code: 1-Black 2-Green 3-Red 4-White
• Mounting: 1/2 Inch Threaded
• Material: Nitrile Insert, Thermoplastic Shell
• Application: Conveyor, Grinder, Industrial Motor, Industrial Saw, Pump
• Enclosure: NEMA 6/6P, IP65, IP67/68
• Approval: UL, CSA
• Additional Information: Temperature Rating 105 Deg C; Constructional Feature Dusttight, Oiltight, Watertight
• Catalog Number: 32680
• Brand Name: Quick-Change[R]
• Type: Male
• Keyway Type: Single
• Receptacle Type: Straight
• Number Of Poles: 4
• Voltage Rating: 600 VAC/VDC
• Current Rating: 20 Ampere
• Catalog Description: QUICK-CHANGE BRADPOWER, MALE, 1/2"-14 NPT, 4 POLES, RECEPTACLE, 12/1 AWG, LENGTH 0.30M
• Category: Pin & Sleeve Devices
• Full Technical Description: Male Type; Nitrile Insert, Thermoplastic Shell Material; UL, CSA Approval; Conveyor, Grinder, Industrial Motor, Industrial Saw, Pump Application; 600 VAC/VDC Voltage Rating; 1/2 Inch Threaded Mounting; NEMA 6/6P, IP65, IP67/68 Enclosure; 20 Ampere Current Rating; 4 Pole(S); 12 AWG 12 Inch Pigtail, PVC Terminal Type; Straight Receptacle Type; Single Keyway Type; 1-Black 2-Green 3-Red 4-White Wire Code; QUICK-CHANGE[R] Brand; Temperature Rating 105 Deg C; Constructional Feature Dusttight, Oiltight, Watertight
• Made In Usa: Yes
• Manufacturer: WOODHEAD/AERO-MOTIVE/BRAD HARRISON/DANIEL WOODHEAD
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Quick Connect Receptacle
• Unspsc: 39121413
• UPC 12 Digit: 786788326807
• SKU Name: wood 32680

Resources

• Manufacturer Spec Sheet

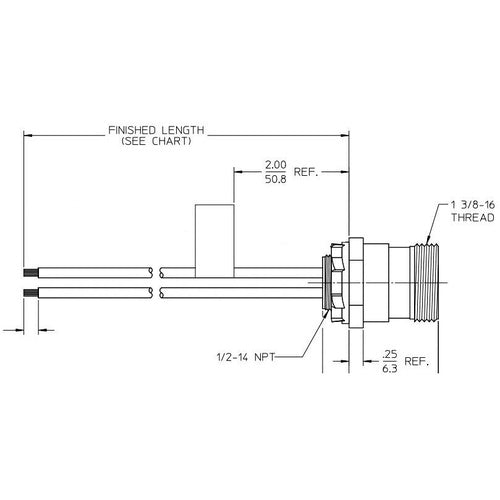

• Technical Drawing
