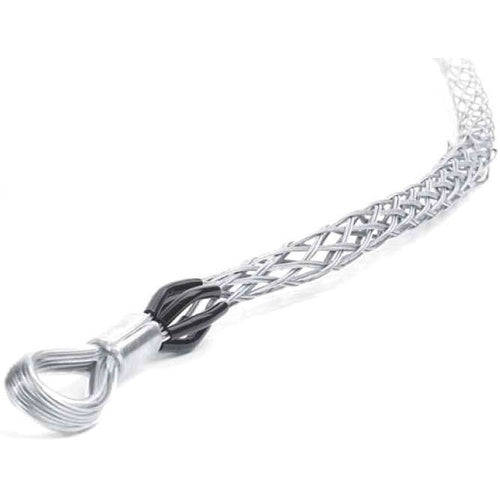

Woodhead 35944 1300950176 Heavy Duty Short Pulling Grip

Overview

Woodhead 35944 1300950176 Heavy Duty Short Pulling Grip

Product Specifications

• UPC: 78678835944
• Maximum Cable Outer Diameter: 1.99 INCH
• Mesh Material: GALVANIZED STEEL
• Breaking Strength: 16400 LB
• Application: OVERHEAD/UNDERGROUND CABLE PULLING
• Approval: CSA
• Catalog Number: 35944
• Brand Name: SUPER-SAFEWAY[R]
• Type: MEDIUM DUTY, SHORT
• Eye Type: BALE
• Eye Size: 7/16 INCH DIA X 11 INCH L
• Mesh Type: SINGLE/DOUBLE WEAVE
• Mesh Length: 24 INCH
• Minimum Cable Outer Diameter: 1.5 INCH
• Catalog Description: MEDIUM DUTY WIRE MESH PULLING GRIP, SINGLE/DOUBLE WEAVE, BALE EYE, SHORT MESH LENGTH 0.61M (24.00"), APPROXIMATE BREAK STRENGTH 7,438.92KG (16,400 LBS)
• Category: Cable & Cord Grips
• Full Technical Description: Medium Duty, Short Type; 24 Inch Mesh Length; 1.5 Inch min. Cable Outer Diameter; 1.99 Inch Max. Cable Outer Diameter; CSA Approval; Overhead/Underground Cable Pulling Application; Galvanized Steel Mesh Material; 7/16 Inch Dia X 11 Inch L Eye Size; 16400 lb Breaking Strength; Bale Eye Type; Single/Double Weave Mesh Type; SUPER-SAFEWAY[R] Brand
• Made In Usa: Yes
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Wire Mesh Cable Pulling Grip
• Unspsc: 39131707
• UPC 12 Digit: 786788359447
• SKU Name: wood 35944
