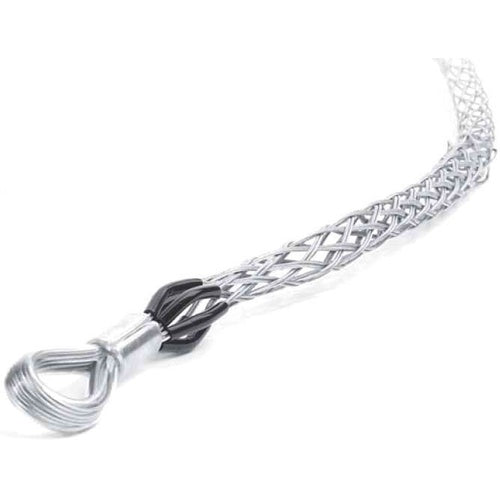

Woodhead 35954 1300950185 Heavy Duty Med Pulling Grip

Overview

Woodhead 35954 1300950185 Heavy Duty Med Pulling Grip

Product Specifications

• UPC: 78678835954
• Maximum Cable Outer Diameter: 2.99 INCH
• Mesh Material: GALVANIZED STEEL
• Breaking Strength: 24500 LB
• Application: OVERHEAD/UNDERGROUND CABLE PULLING
• Approval: CSA
• Catalog Number: 35954
• Brand Name: SUPER-SAFEWAY[R]
• Type: MEDIUM DUTY, STANDARD
• Eye Type: BALE
• Eye Size: 1/2 INCH DIA X 12 INCH L
• Mesh Type: SINGLE/DOUBLE WEAVE
• Mesh Length: 36 INCH
• Minimum Cable Outer Diameter: 2.5 INCH
• Category: Cable & Cord Grips
• Full Technical Description: Medium Duty, Standard Type; 36 Inch Mesh Length; 2.5 Inch min. Cable Outer Diameter; 2.99 Inch Max. Cable Outer Diameter; CSA Approval; Overhead/Underground Cable Pulling Application; Galvanized Steel Mesh Material; 1/2 Inch Dia X 12 Inch L Eye Size; 24500 lb Breaking Strength; Bale Eye Type; Single/Double Weave Mesh Type; SUPER-SAFEWAY[R] Brand
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Wire Mesh Cable Pulling Grip
• Unspsc: 39121725
• UPC 12 Digit: 786788359546
• SKU Name: wood 35954

Resources

• Manufacturer Spec Sheet
