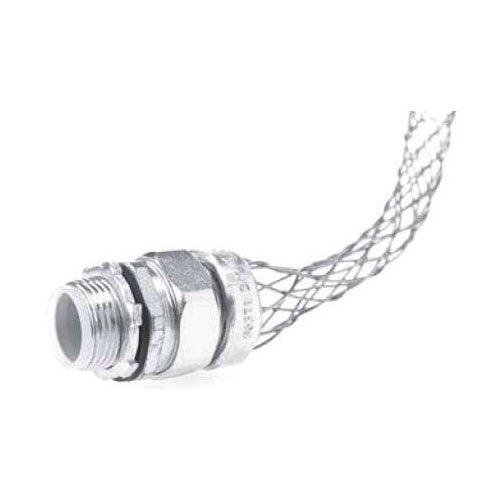

Woodhead 36372 1300960037 1" Straight Male Liquidtight Grip

Overview

Woodhead 36372 1300960037 1" Straight Male Liquidtight Grip

Product Specifications

• UPC: 78678836372
• Mesh Material: Stainless Steel
• Approval: UL, CSA
• Used On: Flexible Conduit
• Additional Information: Enclosure Type NEMA 4; Application Wet Location; Material Malleable Iron/Zinc-Plated Steel Body, Zinc Plated Steel Nut
• Catalog Number: 36372
• Model: 130096
• Trade Size: 1 Inch
• Connector Type: Straight Male
• Connector Material: Aluminum
• Throat Type: Insulated
• Mesh Type: Single Weave
• Mesh Length: 5.25 Inch
• Catalog Description: LIQUID-TIGHT GRIP STRAIN RELIEF, 1" NPT, STRAIGHT MALE, MESH LENGTH 0.133M (5.25")
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Flexible Conduit Used on; 5.25 Inch Mesh Length; UL, CSA Approval; Straight Male Connector Type; 1 Inch Trade Size; Insulated Throat Type; Stainless Steel Mesh Material; Single Weave Mesh Type; Aluminum Connector Material; Enclosure Type NEMA 4; Application Wet Location; Material Malleable Iron/Zinc-Plated Steel Body, Zinc Plated Steel Nut; 130096 Model
• Made In Usa: Yes
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Liquidtight Flexible Conduit Connector With Grip
• Unspsc: 39131707
• UPC 12 Digit: 786788363727
• SKU Name: wood 36372

Resources

• Manufacturer Spec Sheet
