Overview

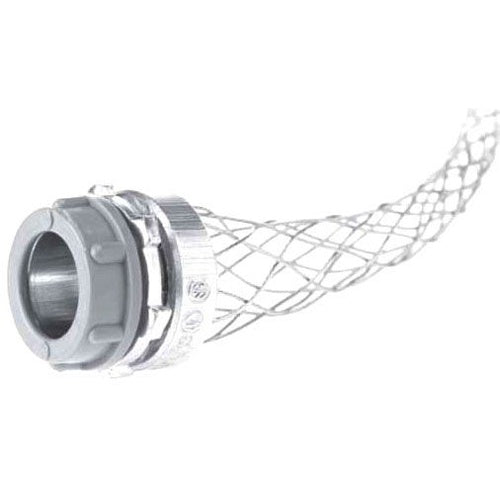

Woodhead 36512 1300970265 1" Insulated Wide-Range Grip

Product Specifications

• UPC: 78678836512
• Cord Size: 0.7 to 0.97 Inch
• Application: Dusttight, Electrical Box, Enclosure, Machine Tool, Bus Drop, General Purpose
• Approval: UL, CSA
• Additional Information: Insulating Bushing Material Thermoplastic
• Catalog Number: 36512
• Model: 130097
• Connector Type: Straight Male
• Connector Material: Zinc Plated Steel
• Mesh Type: Single Weave
• Mesh Material: Galvanized Steel
• Mesh Length: 9.25 Inch
• Thread Size: 1 Inch NPT
• Catalog Description: DUST-TIGHT STRAIN RELIEF WIDE RANGE GRIP, 1" NPT, STRAIGHT MALE, CABLE DIAMETER 17.78-24.64MM (.700-.970"), APPROXIMATE BREAK STRENGTH 317.51KG (700 LBS)
• Category: Cable & Cord Grips
• Full Technical Description: 9.25 Inch Mesh Length; UL, CSA Approval; Dusttight, Electrical Box, Enclosure, Machine Tool, Bus Drop, General Purpose Application; Straight Male Connector Type; 1 Inch NPT Thread Size; 0.7 to 0.97 Inch Cord Size; Galvanized Steel Mesh Material; Single Weave Mesh Type; Zinc Plated Steel Connector Material; Insulating Bushing Material Thermoplastic; 130097 Model
• Made In Usa: Yes
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Flexible Cord/Cable Connector with Grip
• Unspsc: 39131707
• UPC 12 Digit: 786788365127
• SKU Name: wood 36512

Resources

• Manufacturer Spec Sheet
