Overview

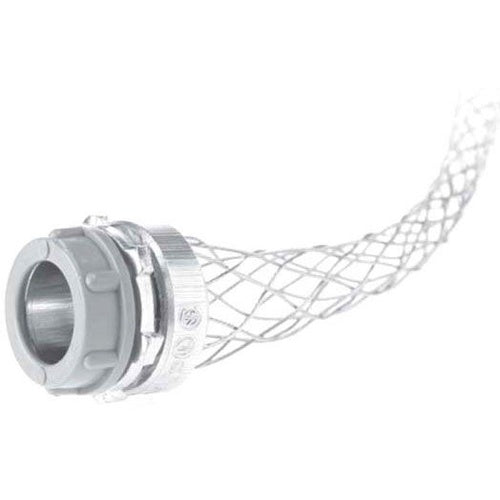

Woodhead 36517 1300970272 2" Insulated Wide-Range Grip

Product Specifications

• UPC: 78678836517
• Cord Size: 1.4 to 1.75 Inch
• Application: Dusttight, Electrical Box, Enclosure, Machine Tool, Bus Drop, General Purpose
• Approval: UL, CSA
• Additional Information: Insulating Bushing Material Thermoplastic
• Catalog Number: 36517
• Model: 130097
• Connector Type: Straight Male
• Connector Material: Zinc Plated Steel
• Mesh Type: Single Weave
• Mesh Material: Galvanized Steel
• Mesh Length: 11 Inch
• Thread Size: 2 Inch NPT
• Catalog Description: DUST-TIGHT STRAIN RELIEF WIDE RANGE GRIP, 1 1/2" NPT, STRAIGHT MALE, CABLE DIAMETER 35.56-44.45MM (1.400-1.750"), APPROXIMATE BREAK STRENGTH 453.59KG (1,400 LBS)
• Category: Cable & Cord Grips
• Full Technical Description: 11 Inch Mesh Length; UL, CSA Approval; Dusttight, Electrical Box, Enclosure, Machine Tool, Bus Drop, General Purpose Application; Straight Male Connector Type; 2 Inch NPT Thread Size; 1.4 to 1.75 Inch Cord Size; Galvanized Steel Mesh Material; Single Weave Mesh Type; Zinc Plated Steel Connector Material; Insulating Bushing Material Thermoplastic; 130097 Model
• Made In Usa: Yes
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Flexible Cord/Cable Connector With Grip
• Unspsc: 39131707
• UPC 12 Digit: 786788365172
• SKU Name: wood 36517

Resources

• Manufacturer Spec Sheet
