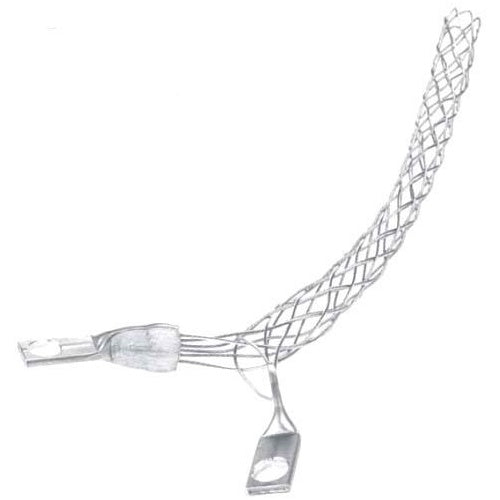

Woodhead 36552 1300960061 Trnx Sr Grip .520-.730

Overview

Woodhead 36552 1300960061 Trnx Sr Grip .520-.730

Product Specifications

• UPC: 78678836552
• Approval: CSA
• Used On: Super-Safeway and Safeway Wiring Device
• Additional Information: Application Indoor; Weave Type Single Weave Mesh; Crimp Material Aluminum
• Catalog Number: 36552
• Brand Name: Safeway[R]
• Model: 130096
• Type: Strain Relief
• Cable Size: 0.52 to 0.73 Inch
• Mesh Material: Galvanized Steel
• Mesh Length: 6.5 Inch
• Eye Size: 2.094 Inch L
• Catalog Description: SAFEWAY WIRE MESH GRIP, STRAIGHT MALE, CABLE DIAMETER 13.21-18.54MM (.520-.730"), EYE DIMENSION 1 11/16"
• Category: Cable & Cord Grips
• Full Technical Description: Strain Relief Type; Super-Safeway and Safeway Wiring Device Used on; 6.5 Inch Mesh Length; 0.52 to 0.73 Inch Cable Size; CSA Approval; Galvanized Steel Mesh Material; 2.094 Inch L Eye Size; SAFEWAY[R] Brand; Application Indoor; Weave Type Single Weave Mesh; Crimp Material Aluminum; 130096 Model
• Made In Usa: Yes
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Locking Device Cable Grip
• Unspsc: 39131707
• UPC 12 Digit: 786788365523
• SKU Name: wood 36552

Resources

• Manufacturer Spec Sheet
