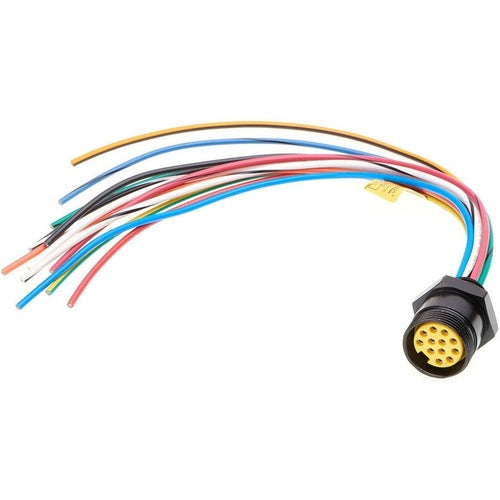

Woodhead 3R2004A20A1201 1300150055 12P 12" Female Receptacle

Overview

Woodhead 3R2004A20A1201 1300150055 12P 12" Female Receptacle

Product Specifications

• UPC: 78678838621
• Terminal Type: 16 AWG 12 INCH PIGTAIL, PVC
• Wire Code: 1-ORANGE 2-BLUE 3-WHITE/BLACK 4-RED/BLACK 5-GREEN/BLACK 6-ORANGE/BLACK 7-BLUE/BLACK 8-BLACK/WHITE 9-GREEN (GROUND) 10-RED 11-WHITE 12-BLACK
• Mounting: 1/2 INCH-14NPT
• Material: 303 STAINLESS STEEL SHELL, PVC INSERT
• Application: ASSEMBLY LINE, CONVEYOR, HP MOTOR, LIMIT SWITCH, MATERIAL HANDLING SYSTEM, PACKAGING, FOOD PROCESSING EQUIPMENT, PHOTOELECTRIC SENSOR, PNEUMATIC/HYDRAULIC VALVE, PROXIMITY SWITCH, SOLENOID, TRANSFER
• Enclosure: NEMA 6P, IP68
• Approval: UL, CSA
• Additional Information: OPERATING TEMPERATURE -4 TO 221 DEG F
• Catalog Number: 3R2004A20A1201
• Brand Name: Mini-Change[R]
• Type: FEMALE
• Keyway Type: SINGLE
• Receptacle Type: STRAIGHT
• Number Of Poles: 12
• Voltage Rating: 600 VAC/VDC
• Current Rating: 5 AMPERE
• Category: Pin & Sleeve Devices
• Full Technical Description: Female Type; 303 Stainless Steel Shell, PVC Insert Material; UL, CSA Approval; Assembly Line, Conveyor, HP Motor, Limit Switch, Material Handling System, Packaging, Food Processing Equipment, Photoelectric Sensor, Pneumatic/Hydraulic Valve, Proximity Switch, Solenoid, Transfer Application; 600 VAC/VDC Voltage Rating; 1/2 Inch-14NPT Mounting; NEMA 6P, IP68 Enclosure; 5 Ampere Current Rating; 12 Pole(S); 16 AWG 12 Inch Pigtail, PVC Terminal Type; Straight Receptacle Type; Single Keyway Type; 1-Orange 2-Blue 3-White/Black 4-Red/Black 5-Green/Black 6-Orange/Black 7-Blue/Black 8-Black/White 9-Green (Ground) 10-Red 11-White 12-Black Wire Code; MINI-CHANGE[R] Brand; Operating Temperature -4 to 221 Deg F
• Manufacturer: Woodhead
• Manufacturer Brand: Brad Harrison/Daniel Woodhead
• Sub Category: Quick Connect Receptacle
• Unspsc: 31163101
• UPC 12 Digit: 786788386214
• SKU Name: wood 3r2004a20a1201
