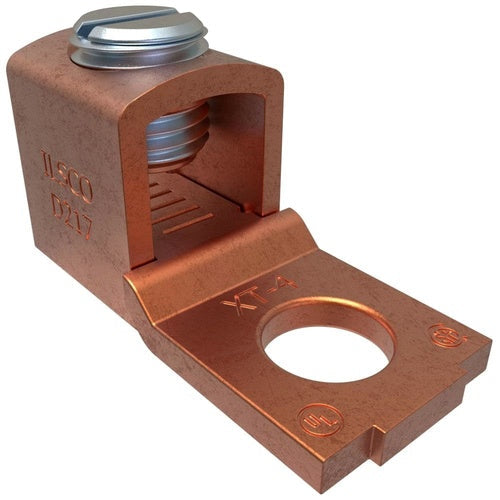

Ilsco XT-4 14-4Awg Copper Terminal Lug

Product Specifications

• UPC: 78366995755
• Material: Electrolytic Copper
• Number Of Pad Holes: 1
• Pad Size: 5/8 Inch L x 1/2 Inch W
• Stud Size: 1/4 Inch
• Overall Length: 1-1/8 Inch
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: Voltage Rating 2000 V; Height 5/8 Inch; Packaging Quantity 100
• Catalog Number: XT-4
• Model: XT
• Number Of Conductors: 1
• Minimum Conductor Size: 14 AWG
• Maximum Conductor Size: 4 AWG
• Conductor Material: Copper
• Pad Type: Straight
• Screw Type: Slot
• Catalog Description: COPPER MECHANICAL LUG, CONDUCTOR RANGE 4-14, 1 PORT, 1 HOLE, 1/4IN BOLT SIZE, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Electrolytic Copper Material; 1-1/8 Inch Overall Length; 14 AWG min. Conductor Size; 4 AWG Max. Conductor Size; Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size; 5/8 Inch L X 1/2 Inch W Pad Size; 1 Pad Hole(S); Straight Pad Type; Slot Screw Type; Voltage Rating 2000 V; Height 5/8 Inch; Packaging Quantity 100; XT Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669957556
• SKU Name: xt4 ilsco
