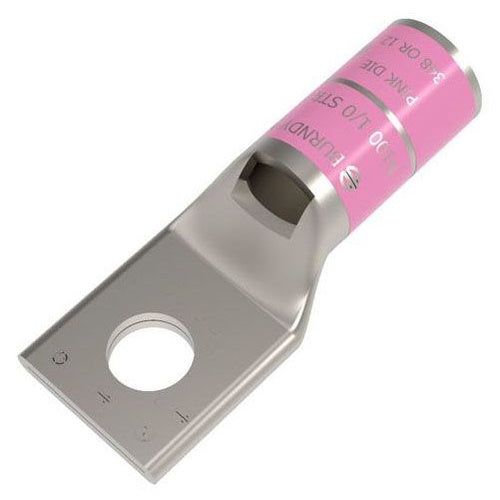

Burndy YA25L2BOX 1/0 Str Short 1/4 Copper Lug

Overview

Burndy YA25L2BOX 1/0 Str Short 1/4 Copper Lug

Product Specifications

• UPC: 78181031325
• Pad Size: 0.75 Inch W x 0.12 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Pink
• Die Index: 12/348
• Material: Electro-Tin Plated Copper
• Overall Length: 1.84 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 15/16 Inch; Cable Entry Type Beveled Entry, Chamfered
• Catalog Number: YA25L2BOX
• Brand Name: HYLUG[TM]
• Model: YA-L
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 100 (Navy), 1/0 AWG Stranded (Code)
• Barrel Type: Short, Skived, Standard, Straight
• Barrel Length: 0.88 Inch
• Catalog Description: CU COMP TERMINAL CODE COND, BVL ENTRY, 1 HOLE W/INSPWINDOW, 1/0 AWG CODE, 100 NAVY, 600 V-35 KV, 1/4" STUD, STANDARD BARREL, TIN PLATED, PINK, 12 OR 348 INDEX
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Pink Color; 1.84 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 100 (Navy), 1/0 AWG Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 12/348 Die Index; 0.75 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Short, Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 15/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-L Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810313251
• SKU Name: ya25l2box burndy

Resources

• Manufacturer Spec Sheet
• Technical Drawing
• Technical Line Drawing
