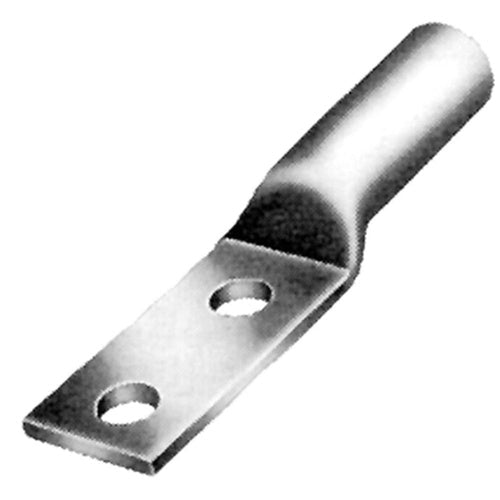

Burndy YA39A5N131TD12E 2-Hole Lug

Overview

Burndy YA39A5N131TD12E 2-Hole Lug

Product Specifications

• UPC: 78181029030
• Pad Size: 1.31 Inch W x 0.31 Inch Thk
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: 300
• Material: Electro-Tin Plated Aluminum
• Overall Length: 6.09 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-7/8 Inch; Tongue Type Narrow
• Catalog Number: YA39A5N131TD12E
• Brand Name: HYLUG[TM]
• Model: YA-E
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Aluminum/Copper
• Conductor Size: 500 to 900 KCMIL (Aluminum), 500 KCMIL Stranded (Copper)
• Barrel Type: Straight
• Barrel Length: 1.86 Inch
• Catalog Description: 750 KCMIL, AL TERMINAL, ONE HOLE, 1/2", STUD SIZE, NARROW TONGUE, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAP, AL9CU, UL/CSA, 90C, UP TO 35KV, E-LINE SERIES, PINK COLOR CODE, 300 DIE INDEX, STUD HOLE SPACING=1.75 IN
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Aluminum Material; Pink Color; 6.09 Inch Overall Length; 1.86 Inch Barrel Length; Aluminum/Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 500 to 900 kcmil (Aluminum), 500 kcmil Stranded (Copper) Conductor Size; 1/2 Inch Stud Size; 300 Die Index; 1.31 Inch W X 0.31 Inch Thk Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-7/8 Inch; Tongue Type Narrow; YA-E Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810290309
• SKU Name: ya39a5n131td12e burndy

Resources

• Manufacturer Spec Sheet
• Technical Drawing
• Technical Line Drawing
