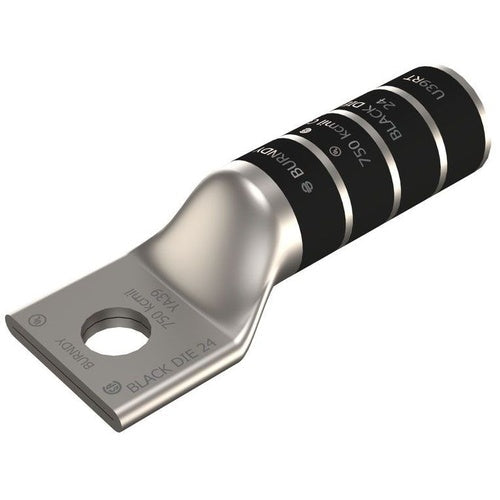

Burndy YA39N 750 Copper 1-Hole Long 1/2 Lug

Overview

Burndy YA39N 750 Copper 1-Hole Long 1/2 Lug

Product Specifications

• UPC: 78181002124
• Pad Size: 1.91 Inch W x 0.27 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Black
• Die Index: 24
• Material: Electro-Tin Plated Copper
• Overall Length: 5.11 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 2-15/16 Inch; Cable Entry Type Beveled Entry, Chamfered
• Catalog Number: YA39N
• Brand Name: HYLUG[TM]
• Model: YA
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 750 KCMIL Stranded (Code)
• Barrel Type: Long, Standard, Straight
• Barrel Length: 2.88 Inch
• Catalog Description: 750 KCMIL CU, ONE HOLE, 1/2 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV,BLACK COLOR CODE, 24 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; Black Color; 5.11 Inch Overall Length; 2.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 750 kcmil Stranded (Code) Conductor Size; 1/2 Inch Stud Size; 24 Die Index; 1.91 Inch W X 0.27 Inch Thk Pad Size; 1 Pad Hole(S); Long, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 2-15/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810021248
• SKU Name: ya39n burndy

Resources

• Manufacturer Spec Sheet
• Technical Drawing
• Technical Line Drawing
