Overview

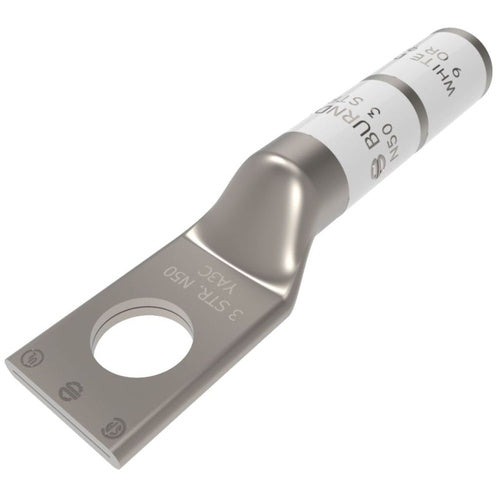

Burndy YA3CTC14 #2 Sol-1/4 Stud HYLUG

Product Specifications

• Catalog Description: 3 AWG CU, ONE HOLE, 1/4 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV,WHITE COLOR CODE, 9 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; White Color; 2.23 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL 467, CSA Approval; 600 V to 35 kV Voltage Rating; 2 AWG Solid, 3 AWG Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 9 Die Index; 0.55 Inch W X 0.09 Inch Thk Pad Size; 1 Pad Hole(S); Long, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-5/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-TC Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810019610
• SKU Name: ya3ctc14 burndy

Resources

• Manufacturer Spec Sheet
• Technical Drawing
• Technical Line Drawing
