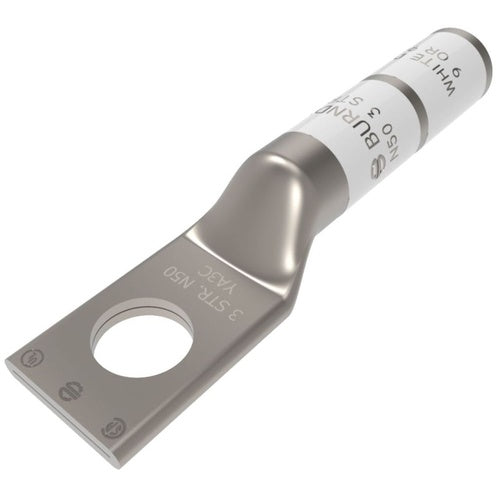

Burndy YA3CTC38 #3Str-3/8 Copper Hydnt Lug

Overview

Burndy YA3CTC38 #3Str-3/8 Copper Hydnt Lug

Product Specifications

• UPC: 78181001962
• Pad Size: 0.58 Inch W x 0.08 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Color: White
• Die Index: 9
• Material: Electro-Tin Plated Copper
• Overall Length: 2.42 Inch
• Approval: UL 467, CSA
• Additional Information: RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-5/16 Inch; Cable Entry Type Beveled Entry, Chamfered
• Catalog Number: YA3CTC38
• Brand Name: HYLUG[TM]
• Model: YA-TC
• Voltage Rating: 600 V to 35 kV
• Conductor Material: Copper
• Conductor Size: 50 (Navy), 2 AWG Solid, 3 AWG Stranded (Code)
• Barrel Type: Long, Standard, Straight
• Barrel Length: 1.25 Inch
• Catalog Description: 3 AWG CU, ONE HOLE, 3/8 STUD SIZE, LONG BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV,WHITE COLOR CODE, 9 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Copper Material; White Color; 2.42 Inch Overall Length; 1.25 Inch Barrel Length; Copper Conductor Material; UL 467, CSA Approval; 600 V to 35 kV Voltage Rating; 50 (Navy), 2 AWG Solid, 3 AWG Stranded (Code) Conductor Size; 3/8 Inch Stud Size; 9 Die Index; 0.58 Inch W X 0.08 Inch Thk Pad Size; 1 Pad Hole(S); Long, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 1-5/16 Inch; Cable Entry Type Beveled Entry, Chamfered; YA-TC Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810019627
• SKU Name: ya3ctc38 burndy

Resources

• Manufacturer Spec Sheet
• Technical Drawing
• Technical Line Drawing
