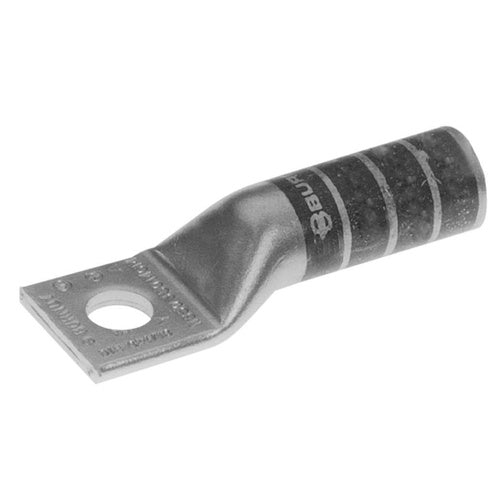

Burndy YA6CT4 6Awg 1-Hole Lug

Overview

Burndy YA6CT4 6Awg 1-Hole Lug

Product Specifications

• UPC: 78181017306
• Color: Blue
• Die Index: 7
• Material: Tin Plated Copper
• Overall Length: 2.13 Inch
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Wire Strip Length 1-3/16 Inch; Cable Entry Type Chamfered
• Catalog Number: YA6CT4
• Conductor Material: Copper
• Conductor Size: 6 AWG Solid/Stranded
• Barrel Type: Long, Straight
• Barrel Length: 1.12 Inch
• Pad Size: 0.58 Inch W x 0.06 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 3/8 Inch
• Catalog Description: CU TERMINAL, 1 HOLE, #6 STR, 3/8" STUD, 2.53" L, 0.58" W, TIN PLATED, BLUE, 7 INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Copper Material; Blue Color; 2.13 Inch Overall Length; 1.12 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 6 AWG Solid/Stranded Conductor Size; 3/8 Inch Stud Size; 7 Die Index; 0.58 Inch W X 0.06 Inch Thk Pad Size; 1 Pad Hole(S); Long, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Wire Strip Length 1-3/16 Inch; Cable Entry Type Chamfered
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121448
• UPC 12 Digit: 781810173060
• SKU Name: ya6ct4 burndy
