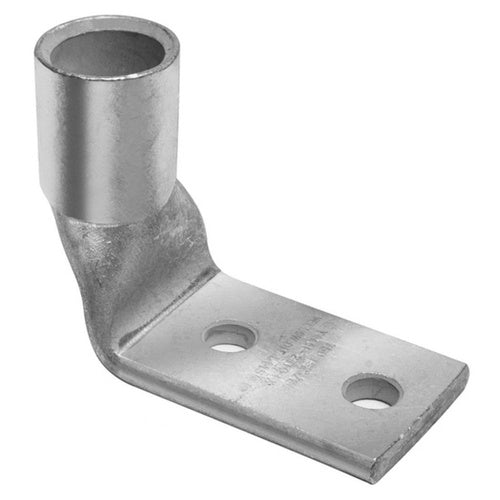

Burndy YA8CL2-TC1490 Terminal Lug 50260L

Overview

Burndy YA8CL2-TC1490 Terminal Lug 50260L

Product Specifications

• UPC: 78181004426
• Pad Size: 0.41 INCH W X 0.08 INCH THK
• Number Of Pad Holes: 2
• Pad Hole Spacing: 5/8 INCH
• Stud Size: 1/4 INCH
• Color: RED
• Die Index: 49
• Material: ELECTRO TIN PLATED COPPER
• Overall Length: 1.49 INCH
• Approval: UL, CSA
• Additional Information: ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 1/2 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW
• Catalog Number: YA8CL2TC1490
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YA-L-2TC
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 37/24, 8 AWG (WELD), 6 AWG SOLID, 8 AWG STRANDED
• Barrel Type: SKIVED, STANDARD, 90 DEG
• Barrel Length: 0.44 INCH
• Catalog Description: CU TERMINAL, 2 HOLES W/INSP W, #8STR, 600V-35KV, 1/4" STUD, TIN - ELECTRO PLATED, RED, 49 INDEX, UL LISTED 90 DEG C
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; Red Color; 1.49 Inch Overall Length; 0.44 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 37/24, 8 AWG (Weld), 6 AWG Solid, 8 AWG Stranded Conductor Size; 1/4 Inch Stud Size; 49 Die Index; 0.41 Inch W X 0.08 Inch Thk Pad Size; 2 Pad Hole(S); 5/8 Inch Pad Hole Spacing; Skived, Standard, 90 Deg Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled, Chamfered; Wire Strip Length 1/2 Inch; Temperature Rating 90 Deg C; With Inspection Window; YA-L-2TC Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810044261
• SKU Name: ya8cl2tc1490 burndy
