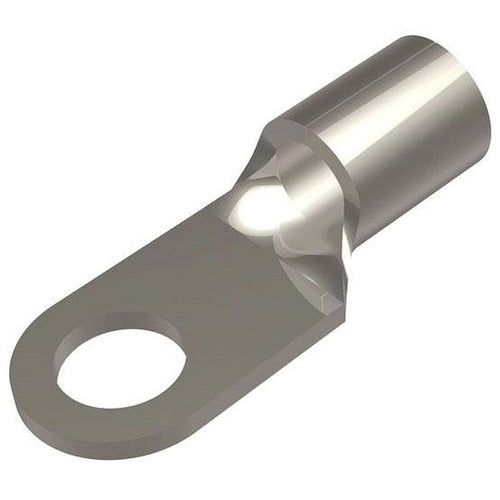

Burndy YAD28M12E12 4/0Awg 1/2 Terminal

Overview

Burndy YAD28M12E12 4/0Awg 1/2 Terminal

Product Specifications

• UPC: 78181054955
• Catalog Number: YAD28M12E12
• Brand Name: HYLUG[T], BURNDY[R]
• Model: YAD
• Type: BRAZED SEAM BARREL, STANDARD NECK
• Maximum Conductor Size: 4/0 AWG CODE/FLEX (COPPER)
• Insulation Type: NON INSULATED
• Stud Size: 1/2 INCH
• Additional Information: SIZE 2.2 INCH L X 0.95 INCH W; MATERIAL ELECTROLYTIC TIN PLATED COPPER; OUTER DIAMETER 0.89 INCH; WIRE STRIP LENGTH 1 INCH
• Catalog Description: NON-INSULATED BRAZED BARREL COPPER TERMINAL; ACCOMMODATES: 4/0 AWG STR CODE/FLEX (95-120MM); STUD: 1/2"; LENGTH: 2.20"
• Category: Large Terminals & Connectors
• Full Technical Description: Brazed Seam Barrel, Standard Neck Type; 4/0 AWG Code/Flex (Copper) Max. Conductor Size; 1/2 Inch Stud Size; Non Insulated Insulation Type; HYLUG[T], BURNDY[R] Brand; Size 2.2 Inch L X 0.95 Inch W; Material Electrolytic Tin Plated Copper; Outer Diameter 0.89 Inch; Wire Strip Length 1 Inch; YAD Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810549551
• SKU Name: yad28m12e12 burndy

Resources

• Manufacturer Spec Sheet
• Technical Drawing
• Technical Line Drawing
