Overview

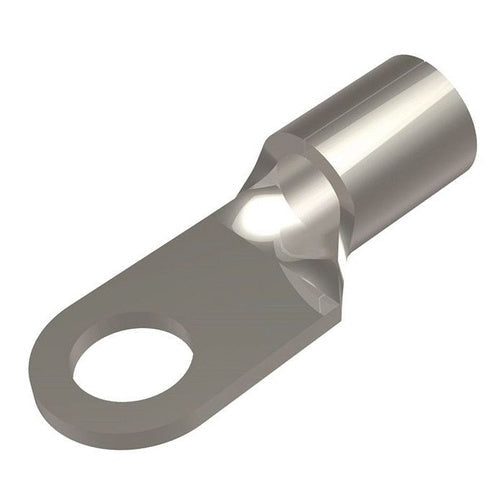

Burndy YAD8CM5E10 8Awg #10 Terminal

Product Specifications

• Catalog Description: UNINSULATED RING TERMINAL FOR 8 AWG.
• Category: Small Terminals & Connectors
• Full Technical Description: Brazed Seam Barrel, Standard Neck Type; 8 AWG Code/Flex (Copper) Max. Conductor Size; #10 Stud Size; Non Insulated Insulation Type; HYLUG[T], BURNDY[R] Brand; Size 0.83 Inch L X 0.4 Inch W; Material Electrolytic Tin Plated Copper; Outer Diameter 0.26 Inch; Wire Strip Length 3/8 Inch; YAD Model
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Ring Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810548950
• SKU Name: yad8cm5e10 burndy

Resources

• Manufacturer Spec Sheet
• Technical Drawing
• Technical Line Drawing
