Overview

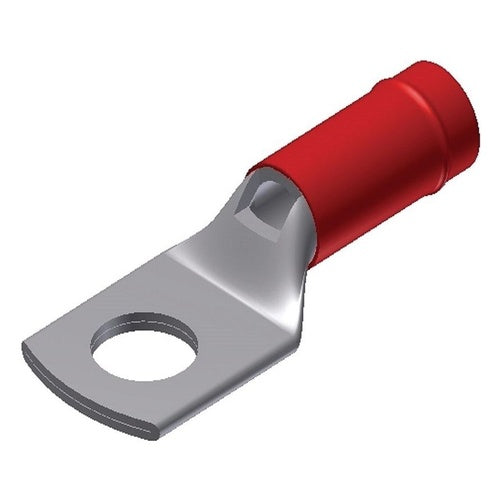

YAEV8CL4, Nylon Ring Terminal For 8 AWG

Product Specifications

• Part Number: YAEV8CL4
• UPC: 781810807163
• GTIN: 00781810807163
• Manufacturer Brand: Burndy
• Features: Double thick tongue for maximum reliability and electrical capacity plus an extra strong terminal tongue; Manufactured from one-piece pure electrolytic copper — high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties; Electro-tin plated to provide long-lasting corrosion resistance; Nylon insulation is locked in place — Insulation will not move or twist off; 600 volt nylon insulation providing high dielectric strength and stability in demanding oily evironmental conditions; Color Coded providing quick, easy wire size connector selection
• Application: For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
• Color Code: Red
• Connector Type: Ring Terminal
• Die Index: 435
• Insulation: Y
• Insulation Type: Nylon
• Material: Copper
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Ring
• Plated: Yes
• Plating Type: Tin
• Product Family: COMPRESSION
• Product Type: Terminal
• Sub Brand: INSULUG
• Trade Name: INSULUGTM
• Type: YAEV-L, Heavy Duty
• Dimension - B Length fraction: 9/25 in
• Dimension - B Length inch: 0.36 in
• Dimension - Bolt Size fraction: 1/2
• Dimension - Length Overall inch: 1.77 in
• Dimension - N inch: 0.38 in
• Dimension - P inch: 0.13 in
• Dimension - Pad Width inch: 0.73 in
• Dimension - Stud Size inch: 1/2
• Dimension - Z (inch): 0.48 in
• Package Height: 0 in
• Package Length: 0 in
• Package Weight: 0 lb
• Package Width: 0 in
• Voltage - Maximum: 600 V
• Conductor - Copper Str Aircraft Size: AN 8
• Conductor - Copper Str Aircraft Size Range: AN 8
• Conductor - Copper Str Size: 8
• Conductor - Copper Str Size Range: 8 AWG
• Conductor Size: 8 AWG
• Conductor Type: CU C Solid-Size CU C Str-Size
• Buy America(n) Qualified: Contact Manufacturer
• Certification - CSA Approved: No
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL486 Military Specified (Mil-Spec)
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Carton Quantity: 500
• Minimum Pack Quantity: 1000
• Pallet Quantity: 72000
