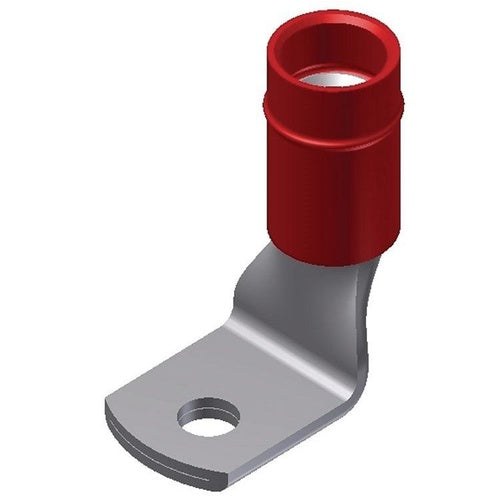

YAEV8CRS, Nylon Right Angle Ring Terminal For 8 AWG

Product Specifications

• Part Number: YAEV8CRS
• UPC: 781810039489
• GTIN: 00781810039489
• Manufacturer Brand: Burndy
• Features: Double thick tongue for maximum reliability and electrical capacity plus an extra strong terminal tongue; Manufactured from one-piece pure electrolytic copper — high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties; Electro-tin plated to provide long-lasting corrosion resistance; Nylon insulation is locked in place — Insulation will not move or twist off; 600 volt nylon insulation providing high dielectric strength and stability in demanding oily evironmental conditions; Color Coded providing quick, easy wire size connector selection
• Application: Designed to Accommodate Larger Conductor Insulation Diameters
• Color Code: Red
• Connector Type: Ring Terminal
• Die Index: 435
• Feature - Barrel Style: Belled
• Feature - Barrel Type: Standard
• Insulation: Y
• Insulation Type: Nylon
• Material: Copper
• Physical Attribute - Number of Holes: 1
• Physical Attribute - Tongue Type: Ring
• Plated: Yes
• Plating Type: Tin
• Product Family: COMPRESSION
• Product Type: Terminal
• Sub Brand: TERMINALS, INSULUG
• Trade Name: INSULUGTM
• Type: YAEV-RS
• Dimension - B Length fraction: 7/16 in
• Dimension - B Length inch: 0.44 in
• Dimension - Bolt Hole Size inch: 0.2 in
• Dimension - Bolt Size fraction: #8 - #10
• Dimension - D inch: 0.45 in
• Dimension - G inch: 0.82 in
• Dimension - Hole Size inch: 0.20 in
• Dimension - Length Overall inch: 1.25 in
• Dimension - N inch: 0.2 in
• Dimension - Outside Diameter inch: 0.36 in
• Dimension - Pad Width inch: 0.41 in
• Dimension - Strip Length inch: 7/16
• Dimension - Stud Size inch: #8;#10
• Dimension - Z (inch): 0.25 in
• Package Height: 0 in
• Package Length: 0 in
• Package Weight: 0 lb
• Package Width: 0 in
• Physical Attribute - Tongue Angle: 90 Degree
• Voltage - Maximum: 600 V
• Conductor - Copper Str Aircraft Size: AN 6
• Conductor - Copper Str Aircraft Size Range: AN 6
• Conductor - Copper Str Size: 8
• Conductor - Copper Str Size Range: 8 AWG
• Conductor Size: 8 AWG
• Conductor Type: CU C Solid-Size CU C Str-Size
• Buy America(n) Qualified: Contact Manufacturer
• Certification - CSA Approved: No
• Certification - cULus: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Industry Standard(s): UL486 Military Specified (Mil-Spec)
• Standards - Industry Standards Met: UL486
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
• Carton Quantity: 500
• Minimum Pack Quantity: 500
• Pallet Quantity: 99999
