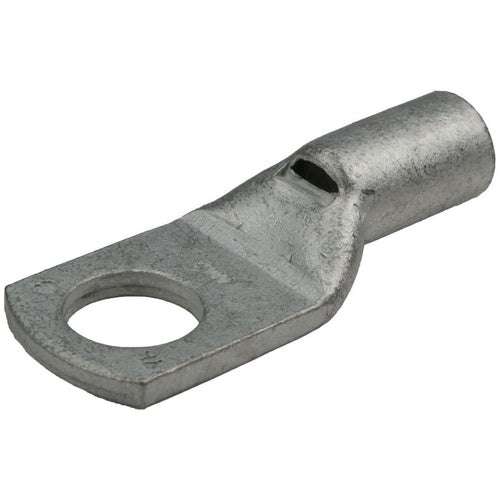

Burndy YAV27L20 Terminal Lug

Product Specifications

• Catalog Description: COPPER COMPRESSION LUG, RING TONGUE, 1 HOLE W/ INSPECTION HOLE, AN-3/0, 5/16" STUD, SHORT BARREL, TIN PLATED
• Full Technical Description: Beveled, Heavy Duty Type; 3/0 AWG (Aircraft) Max. Conductor Size; UL, CSA Approval; 5/16 Inch Stud Size; Non-Insulated Insulation Type; HYLUG[TM] Brand; RoHS Compatible; Dimension 2.45 Inch L X 1.03 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 13/16 Inch; Die Index 45; Used on An Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor; YAV-L Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Ring Lug
• UPC 12 Digit: 781810129845
• SKU Name: yav27l20 burndy
