Product information
Overview

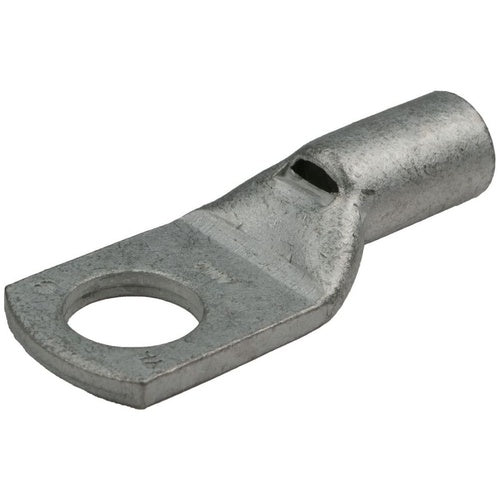

Burndy YAV28L56 Terminal Lug
Product Specifications
- Catalog Description: COPPER COMPRESSION LUG, 1 HOLE W/ INSPECTION WINDOW, AN 4/0 FLEX, 5/16" STUD, SHORT BARREL, TIN PLATED
- Category: Large Terminals & Connectors
- Full Technical Description: Seamless Barrel, Heavy Duty, Double Thick Straight Tongue Type; 4/0 AWG (Aircraft) Max. Conductor Size; UL, CSA Approval; 5/16 Inch Stud Size; BURNDY[R] Brand; RoHS Compatible; Size 2.72 Inch L X 1.12 Inch W; Material Pure Electrolytic Tin Plated Copper; Die Index 46; YAV Model
- Made In Usa: Yes
- Manufacturer: BURNDY PRODUCTS
- Sub Category: Ring Lug
- Unspsc: 39121405
- UPC 12 Digit: 781810093801
- SKU Name: yav28l56 burndy
