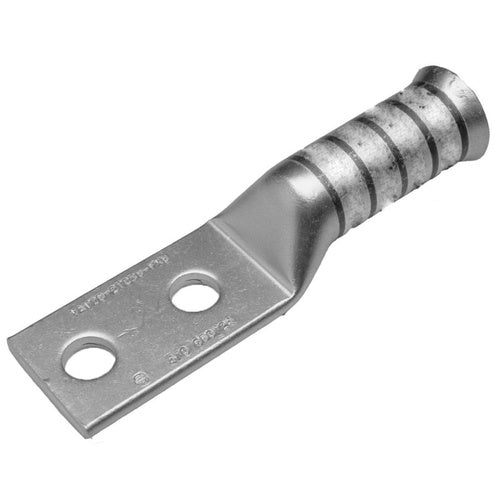

Burndy YAV2C2TC14FXB Terminal Lug

Product Specifications

• Catalog Description: 2 FLEX G,H,I,K,M,DLO, 2 AWG CU, TWO HOLE, 1/4 STUD SIZE, 5/8 HOLE SPACING, LONG BARREL, BELL END, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 10 DIE INDEX.
• Full Technical Description: Electro Tin Plated Copper Material; Brown Color; 3 Inch Overall Length; 1.35 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 125/24 to 150/24, 2 AWG (Weld Flex), 2 AWG (Code) Conductor Size; 1/4 Inch Stud Size; 10 Die Index; 0.68 Inch W X 0.1 Inch Thk Pad Size; 2 Pad Hole(S); 5/8 Inch Pad Hole Spacing; Belled End, Long, Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled; Wire Strip Length 1 7/16 Inch; Temperature Rating 90 Deg C; YAV-2TC-FXB Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810171028
• SKU Name: yav2c2tc14fxb burndy
