Overview

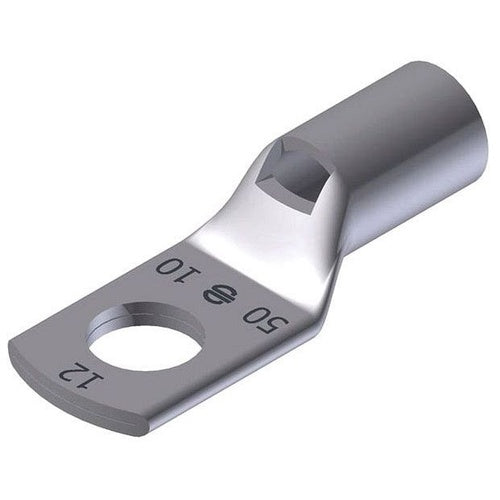

Burndy YAV35M10 Copper Tubular Terminal

Product Specifications

• Catalog Description: NON INSULATED CU TUBULAR TERMINALS, METRIC, 1 HOLE/W/INSP W, 35MM, M10 STUD, TIN - ELECTRO PLATED, 10 INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Copper Material; 45.9 mm Overall Length; 16 mm Barrel Length; Copper Conductor Material; 600 V to 35 kV Voltage Rating; 35 Sq mm Conductor Size; M10 Stud Size; 10 Die Index; 17.3 mm W X 2.5 mm Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Chamfered; Wire Strip Length 17 mm; YAV-M Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 781810294185
• SKU Name: yav35m10 burndy
