Burndy YAV6C2TC14FXB 6Flex-1/4Stds Lug

Overview

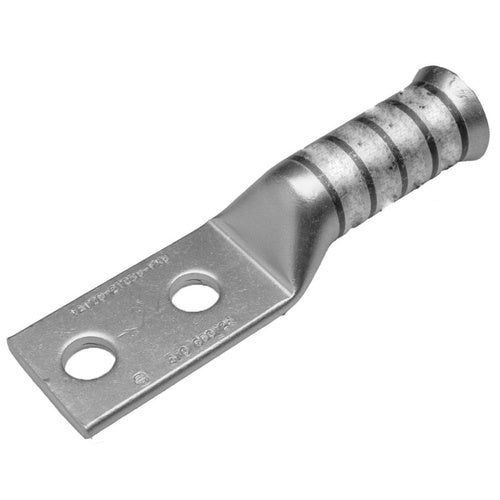

Burndy YAV6C2TC14FXB 6Flex-1/4Stds Lug

Product Specifications

• Catalog Description: 6 FLEX G,H,I,K,M,DLO, 6 AWG CU, TWO HOLE, 1/4 STUD SIZE, 5/8 HOLE SPACING, LONG BARREL, BELL END, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BLUE COLOR CODE, 7 OR 374 DIE INDEX.
• Full Technical Description: Electro Tin Plated Copper Material; Blue Color; 2.76 Inch Overall Length; 1.22 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 61/24, 6 AWG (Weld Flex), 6 AWG (Code) Conductor Size; 1/4 Inch Stud Size; 7 Die Index; 0.48 Inch W X 0.08 Inch Thk Pad Size; 2 Pad Hole(S); 5/8 Inch Pad Hole Spacing; Belled End, Long, Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Beveled; Wire Strip Length 1 5/16 Inch; Temperature Rating 90 Deg C; YAV-2TC-FXB Model
• Manufacturer: BURNDY PRODUCTS
• Sub Category: Compression Cable Lug
• UPC 12 Digit: 781810171905
• SKU Name: yav6c2tc14fxb burndy

Resources

• Manufacturer Spec Sheet
