Product information
Overview

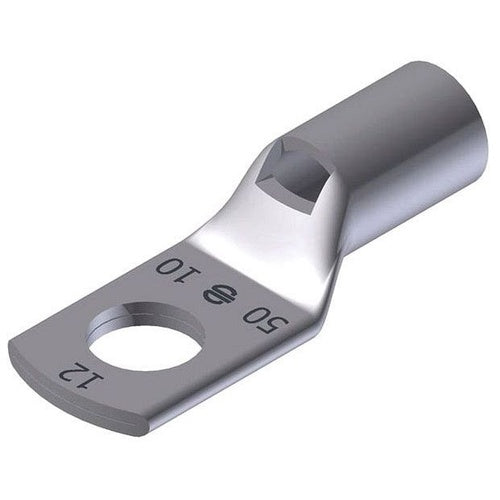

Burndy YAV70M10 Terminal Lug
Product Specifications
- Catalog Description: NON INSULATED CU TUBULAR TERMINALS, METRIC, 1 HOLE/W/INSP W, 70MMCLASS2, 3/8" STUD, TIN - ELECTRO PLATED.
- Category: Large Terminals & Connectors
- Full Technical Description: Electro Tin Plated Copper Material; 49.3 mm Overall Length; 17.5 mm Barrel Length; Copper Conductor Material; 600 V to 35 kV Voltage Rating; 70 Sq mm Conductor Size; M10 Stud Size; 13 Die Index; 21.1 mm W X 3 mm Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; HYLUG[T], BURNDY[R] Brand; RoHS Compatible; Cable Entry Type Chamfered; Wire Strip Length 19 mm; YAV-M Model
- Made In Usa: Yes
- Manufacturer: BURNDY PRODUCTS
- Sub Category: Compression Cable Lug
- Unspsc: 39121405
- UPC 12 Digit: 781810328200
- SKU Name: yav70m10 burndy
