Product information

Overview

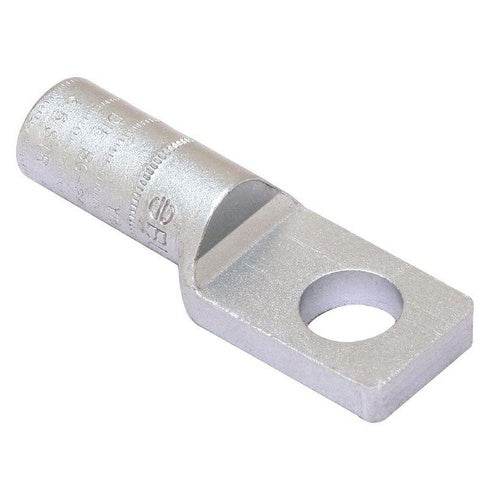

Burndy YRA27U 3/0 Al/Cu 1-Hole Lug

Product Specifications

  • Catalog Description: AL COMPRESSION LUG FOR JOINING AL AND CU CABLE TO TRANSFORMER AND EQUIPMENT PADS, PREFILLED WITH PENETROX, THICKNESS: .25.
  • Full Technical Description: Aluminum Material; 3-1/4 Inch Overall Length; Aluminum, Copper Conductor Material; 9/16 Inch Stud Size; 249, K-840 Die Index; 1-1/4 Inch Length X 15/16 Inch Width Pad Size; 1 Pad Hole(S); 3/0 AWG Stranded (Aluminum Concentric/Compact/Copper) Aluminum/Copper Conductor Size; HYLUG[TM] Brand; RoHS Compliant; YRA Model
  • Manufacturer: BURNDY PRODUCTS
  • Sub Category: Compression Terminal
  • UPC 12 Digit: 781810810187
  • SKU Name: yra27u burndy
