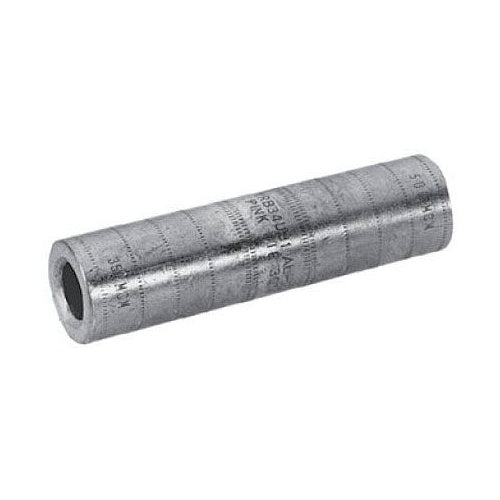

Burndy YRB25U2 Terminal

Overview

Burndy YRB25U2 Terminal

Product Specifications

• UPC: 78181073903
• Outer Diameter: 0.65 Inch
• Length: 2 Inch
• Material: Electro Tin Plated Aluminum
• Color: Tan
• Approval: UL
• Additional Information: RoHS Compatible; Wire Strip Length 15/16 Inch
• Catalog Number: YRB25U2
• Brand Name: HYREDUCER[TM]
• Model: YRB
• Type: Reducing Splice
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Aluminum/Copper
• Side A Conductor Size: 1/0 AWG Stranded
• Side B Conductor Size: 2 to 1 AWG Stranded
• Catalog Description: AL SPLICE REDUCER, BARREL A 1/0 AWG, BARREL B 2 AWG, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAPS, UL/CSA, 90C, UP TO 35KV, TAN COLOR CODE, 296 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Reducing Splice Type; Electro Tin Plated Aluminum Material; Tan Color; 2 Inch; 0.65 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL Approval; 600 V to 35 kV Voltage Rating; 2 to 1 AWG Stranded Side B Conductor Size; 1/0 AWG Stranded Side A Conductor Size; HYREDUCER[TM] Brand; RoHS Compatible; Wire Strip Length 15/16 Inch; YRB Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Reducer
• Unspsc: 39121458
• UPC 12 Digit: 781810739037
• SKU Name: yrb25u2 burndy

Resources

• Manufacturer Spec Sheet
• Technical Drawing
• Technical Line Drawing
