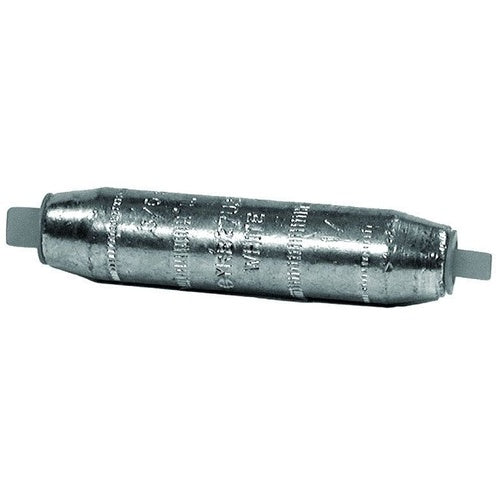

Burndy YRB31U28 350-4/0 Al-Cu,Al-Al Reducer

Overview

Burndy YRB31U28 350-4/0 Al-Cu,Al-Al Reducer

Product Specifications

• UPC: 78181073967
• Outer Diameter: 1.11 Inch
• Length: 4.21 Inch
• Material: Electro Tin Plated Aluminum
• Color: Brown
• Approval: UL
• Additional Information: RoHS Compatible; Wire Strip Length 1-13/16 Inch
• Catalog Number: YRB31U28
• Brand Name: HYREDUCER[TM]
• Model: YRB
• Type: Reducing Splice
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Aluminum/Copper
• Side A Conductor Size: 350 KCMIL
• Side B Conductor Size: 4/0 AWG Stranded
• Catalog Description: AL SPLICE REDUCER, BARREL A 350 KCMIL, BARREL B 4/0 AWG, AL9CU, INTERNAL CHAMFER, TIN PLATED, PREFILLED PENETROX, END CAPS, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 299 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Reducing Splice Type; Electro Tin Plated Aluminum Material; Brown Color; 4.21 Inch; 1.11 Inch Outer Diameter; Aluminum/Copper Conductor Material; UL Approval; 600 V to 35 kV Voltage Rating; 4/0 AWG Stranded Side B Conductor Size; 350 kcmil Side A Conductor Size; HYREDUCER[TM] Brand; RoHS Compatible; Wire Strip Length 1-13/16 Inch; YRB Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Reducer
• Unspsc: 39121458
• UPC 12 Digit: 781810739679
• SKU Name: yrb31u28 burndy

Resources

• Manufacturer Spec Sheet
• Technical Drawing
• Technical Line Drawing
