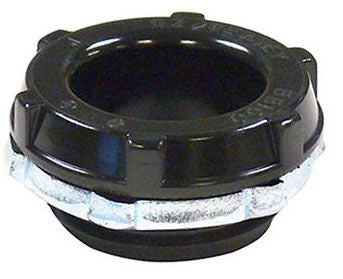

OZ-Gedney BB-400 4" 150D Plastic Bushing

Overview

OZ-Gedney BB-400 4" 150D Plastic Bushing

Product Specifications

• UPC: 78312603127
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Bushing Hole Diameter 3-7/8 Inch; Thread Length 5/8 Inch; Application Used to Insulate Cables Passing through Metal Box or Trough
• Catalog Number: BB-400
• Model: BB
• Type: Threaded Male
• Trade Size: 4 Inch
• Diameter: 5-1/8 Inch
• Throat Type: Thermoset Phenolic Insulated
• Temperature Rating: 150 Deg C
• Material: Thermoset Phenolic
• Catalog Description: OZ-GEDNEY TYPE BB NON-GROUNDING INSULATING BUSHING, SIZE: 4 IN, PHENOLIC, BLACK, CONNECTION: MNPT, 150 DEG C, 5-1/8 IN OUTSIDE DIAMETER, 3-7/8 IN HOLE, 5/8 IN THREAD LENGTH, THIRD PARTY CERTIFICATION: UL FILE NUMBER E-20933, CSA 11584, FOR THREADED
• Category: Rigid Conduit Fittings - Plastic
• Full Technical Description: Threaded Male Type; Thermoset Phenolic Material; Rigid Conduit/Imc Used on; UL, CSA Approval; 5-1/8 Inch Diameter; 150 Deg C Temperature Rating; 4 Inch Trade Size; Thermoset Phenolic Insulated Throat Type; Bushing Hole Diameter 3-7/8 Inch; Thread Length 5/8 Inch; Application Used to Insulate Cables Passing Through Metal Box or Trough; BB Model
• Manufacturer: O-Z Gedney
• Manufacturer Brand: O-Z Gedney
• Sub Category: Rigid/EMT Conduit Bushing
• Unspsc: 39121312
• UPC 12 Digit: 783126031270
• SKU Name: ozg bb400

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
