Crouse-Hinds T57-SA 1-1/2" Alum T Body

Overview

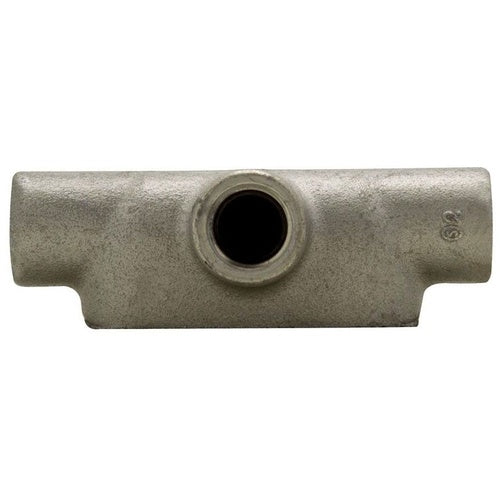

Crouse-Hinds T57-SA 1-1/2" Alum T Body

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES CONDULET FORM 7 CONDUIT OUTLET BODY, COPPER-FREE ALUMINUM, T SHAPE, 1-1/2"
• Full Technical Description: Copper-Free Aluminum (Body) Material; 8-3/16 Inch Length X 3-9/16 Inch Width X 2-9/16 Inch Height Size; Rigid Conduit Used on; 1-1/2 Inch Hub Size; Threaded Installation; T Configuration; 3 Hub(S); UL 514B/50E, CSA C22.2 Approval; Copper-Free Aluminum, Stainless Steel Cover Screw, Snap Tight, Wedge Nut Cover Type; Tee Hub Location; Form 7 Form Type; Side Access Opening; CONDULET[R] Brand; Enclosure Rating NEMA 3R/12; Application Non-Hazardous Location; Applicable Standard Federal Specification WC-586D, Nec/Cec; T Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 782274627717
• SKU Name: crsh t57sa

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
