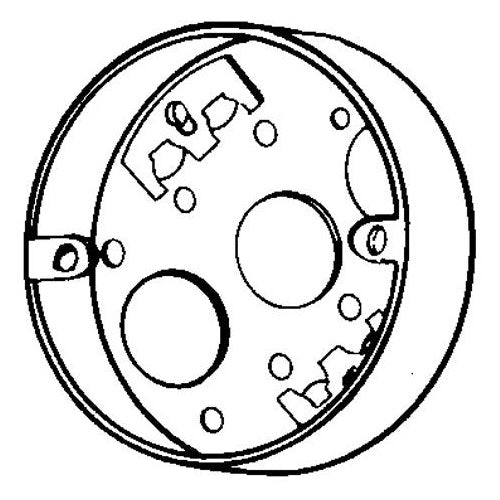

Appleton 510LC 3-1/4" Round Box 1/2 Deep

Overview

Appleton 510LC 3-1/4" Round Box 1/2 Deep

Product Specifications

• UPC: 68785576475
• Material: Pre-Galvanized G60 0.0625 Inch AISI/SAE 1008 Steel
• Approval: UL 514A/B/D
• Additional Information: APPLICABLE STANDARD NEMA OS1
• Catalog Number: 510LC
• Depth: 1/2 Inch
• Diameter: 3-1/4 Inch
• Capacity: 4.5 Cubic Inch
• Shape: Round
• Number Of Knockouts: 7
• Knockout Location: (7) Bottom
• Knockout Size: (3) 1/2 Inch Bottom, (4) 21/32 Inch Bottom
• Catalog Description: FEATURES:WITH 1/2 AND 21/32 IN CONDUIT KNOCKOUT , NONMETALLIC SHEATHED CL-9 CABLE CLAMPS, STANDARD:UL E18095, NUMBER OF OUTLET:7, MATERIAL:STEEL, SIZE:3.25 X 0.5IN, CUBIC CAPACITY:4.5CI
• Category: Steel Outlet Boxes
• Full Technical Description: Pre-Galvanized G60 0.0625 Inch Aisi/Sae 1008 Steel Material; 1/2 Inch; Round Shape; UL 514A/B/D Approval; 3-1/4 Inch Diameter; 4.5 Cubic Inch Capacity; (3) 1/2 Inch Bottom, (4) 21/32 Inch Bottom Knockout Size; 7 Knockout(S); (7) Bottom Knockout Location; Applicable Standard NEMA OS1
• Made In Usa: Yes
• Manufacturer: EGS Electrical Group
• Manufacturer Brand: EGS Electrical Group
• Sub Category: Octagon/Round Box - Steel
• Unspsc: 39121308
• UPC 12 Digit: 687855764754
• SKU Name: egs 510lc

Resources

• Manufacturer Spec Sheet
