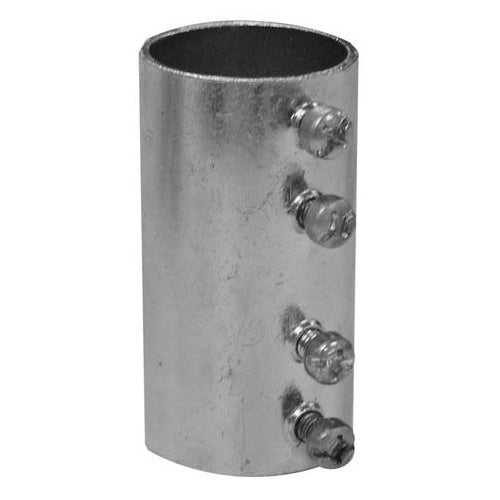

Appleton 5200S 2" Emt Set-Screw Coupling

Overview

Appleton 5200S 2" Emt Set-Screw Coupling

Product Specifications

• UPC: 68785585126
• Constructional Feature: Concretetight
• Approval: UL 514B, CUL, CSA C22.2
• Used On: EMT Conduit
• Additional Information: Applicable Standard NEMA FB-1
• Catalog Number: 5200S
• Brand Name: ETP[R]
• Model: Series 5000S
• Type: Set Screw
• Trade Size: 2 Inch
• Diameter: 2.38 Inch
• Length: 4 Inch
• Material: Zinc Plated Steel
• Catalog Description: FEATURES:CONCRETETIGHT, ZINC ELECTRO PLATED FINISH, STANDARD:UL 514B, CSA C22.2, NEMA FB-1, TRADE SIZE:2IN, OUTSIDE DIAMETER:2.375IN, LENGTH:4IN, MATERIAL:STEEL
• Category: Steel Set Screw Emt Couplings
• Full Technical Description: Set Screw Type; Zinc Plated Steel Material; 4 Inch; EMT Conduit Used on; UL 514B, CUL, CSA C22.2 Approval; 2.38 Inch Diameter; 2 Inch Trade Size; Concretetight; Etp Brand; Applicable Standard NEMA FB-1; SERIES 5000S Model
• Manufacturer: EGS Electrical Group
• Manufacturer Brand: EGS Electrical Group
• Sub Category: Rigid/EMT Conduit Coupling
• Unspsc: 39131707
• UPC 12 Digit: 687855851263
• SKU Name: egs 5200s

Resources

• Manufacturer Spec Sheet
