Unistrut P1043A-EG 6-Hole U Fitting

Overview

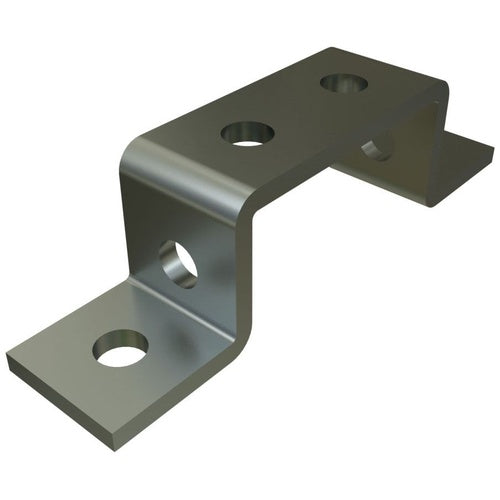

Unistrut P1043A-EG 6-Hole U Fitting

Product Specifications

• Catalog Description: STRUT FITTING, 7"X 1-5/8"X 1-7/8", EG
• Category: Channel & Strut Fittings
• Full Technical Description: U-Fitting Type; ASTM A1011/A36/A575/A576/A635/B633 Grade SS 33 Steel Material; 7 Inch Length X 3-9/32 Inch Width X 1-5/8 Inch Height Size; Electrogalvanized Finish; P1001A Channel Used on; 1-5/8 Inch Channel Width; UL, CSA Applicable Standard; 1/4 Inch Thickness; Hot Rolled Pickled and Oiled Process; 1.05 Pound Weight; 6 Hole(S); 9/16 Inch Diameter Hole Size; 1-5/8 Inch Channel Depth; 3-9/32 Inch Width X 1-5/8 Inch Height Saddle Size; Hole Spacing Size 13/16 Inch (From End), 1-7/8 Inch (on Center); Safety Factor 2.5; P1043A Model
• Made In Usa: Yes
• Manufacturer: Unistrut Corp.
• Manufacturer Brand: Unistrut Corp.
• Sub Category: Channel/Strut U Fitting
• Unspsc: 31162502
• UPC 12 Digit: 786364016177
• SKU Name: unistr p1043aeg

Resources

• Manufacturer Spec Sheet
• Material Safety Data Sheet (MSDS)
• Product Spec Sheet
