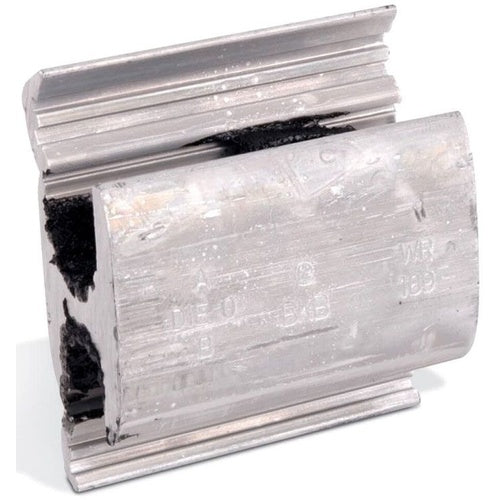

Blackburn WR159 Aluminum H-Type Compression Connector 2-6Ascr 1-6Strn

Overview

Blackburn WR159 Aluminum H-Type Compression Connector 2-6Ascr 1-6Strn

Product Specifications

• UPC: 78378610001
• Maximum Tap Conductor Size: 2 AWG ACSR/Solid, 1 AWG Stranded (Standard), 1 AWG ACSR/Stranded (Compact)
• Die Index: O
• Body Material: 1350 Aluminum Alloy
• Approval: CSA, RUS
• Additional Information: Length 1-7/16 Inch; Temperature Rating 90 Deg C; Applicable Standard ANSI C119.4
• Catalog Number: WR159
• Brand Name: Blackburn
• Model: WR
• Shape: H
• Conductor Material: Copper/Aluminum
• Minimum Run Conductor Size: 6 AWG ACSR/Stranded/Solid (Standard), 6 AWG ASCR/Stranded (Compact)
• Maximum Run Conductor Size: 2 AWG ACSR/Solid, 1 AWG Stranded, (Standard), 1 AWG ACSR/Stranded (Compact)
• Minimum Tap Conductor Size: 6 AWG ACSR/Stranded/Solid (Standard), 6 AWG ASCR/Stranded (Compact)
• Catalog Description: ALUMINUM H-TAP CONNECTOR, WIDE RANGE, CONDUCTOR RANGE MAIN ACSR 2-6, STRANDED 1-6, SOLID 2-6, TAP ACSR 2-6, STRANDED 1-6, SOLID 2-6, DIE O
• Category: Large Terminals & Connectors
• Full Technical Description: 6 AWG Acsr/Stranded/Solid (Standard), 6 AWG Ascr/Stranded (Compact) min. Run Conductor Size; 2 AWG Acsr/Solid, 1 AWG Stranded, (Standard), 1 AWG Acsr/Stranded (Compact) Max. Run Conductor Size; 6 AWG Acsr/Stranded/Solid (Standard), 6 AWG Ascr/Stranded (Compact) min. Tap Conductor Size; 2 AWG Acsr/Solid, 1 AWG Stranded (Standard), 1 AWG Acsr/Stranded (Compact) Max. Tap Conductor Size; H Shape; Copper/Aluminum Conductor Material; CSA, RUS Approval; 1350 Aluminum Alloy Body Material; O Die Index; WR[TM] Wide Range Brand; Length 1-7/16 Inch; Temperature Rating 90 Deg C; Applicable Standard ANSI C119.4; WR Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Tap
• Unspsc: 39121409
• UPC 12 Digit: 783786100019
• SKU Name: wr159 blackburn
