T&B 0405366 1-1/2" Chase Liquidtight Connector

Overview

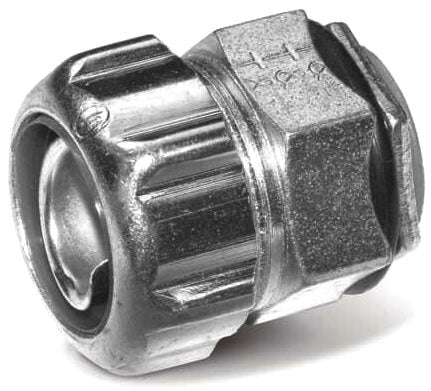

T&B 0405366 1-1/2" Straight Chase Liquidtight Insulated Connector

Product Specifications

• Catalog Description: 1-1/2 INCH STRAIGHT MALLEABLE IRON CHASE LIQUIDTIGHT INSULATED CONNECTOR WITH ELECTRO-ZINC PLATING
• Category: Liquid/Seal Tight
• Full Technical Description: Straight, Threaded Type; Zinc Electroplated Malleable Iron Body; Thermoplastic Nylon Sealing Ring and Insulator; Zinc Plated Steel Ground Cone; Designed for Use with Liquidtight Flexible Metallic Conduit; 1-1/2 Inch Trade Size; Nylon Insulated Throat Type; CHASE Brand; RoHS Compliant; Suitable for Indoor, Outdoor, and Hazardous Location Applications; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; UL 514B, CSA C22.2, and CE Approved; 10 Standard Package
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210053660
• SKU Name: 5366

Resources

Manufacturer Specification Sheet

Product Specification Sheet
