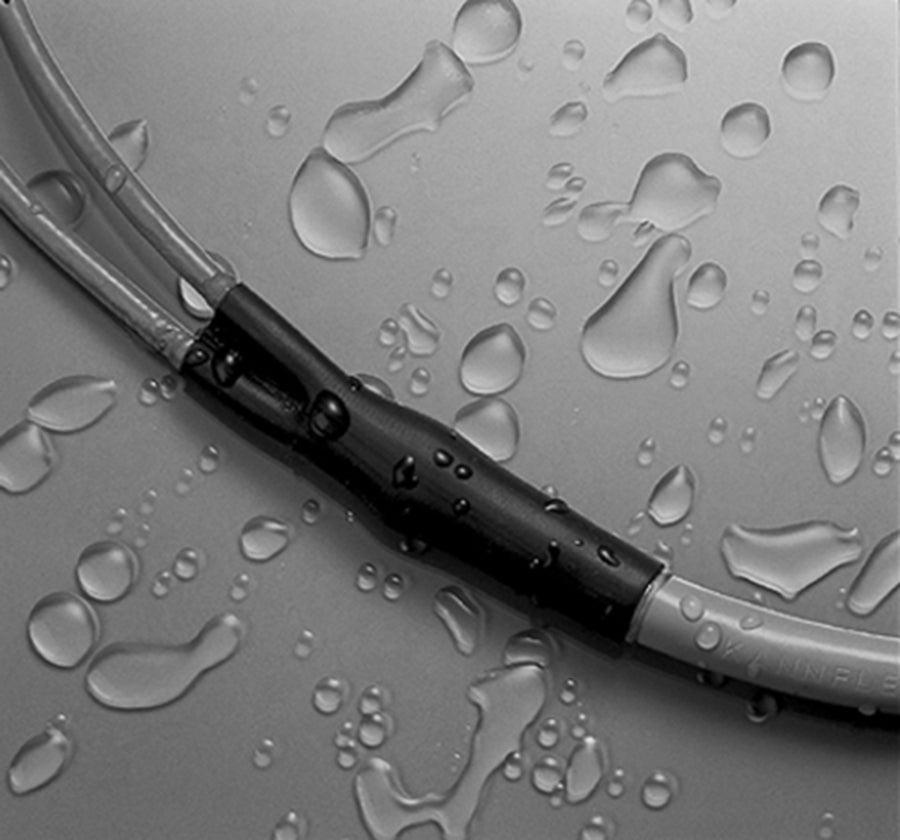

3M™ EPS-300 Heat Shrink Tubing, 1/4", Black, 48" Length, 3:1 Shrink Ratio

Overview

3M™ EPS-300 Heat Shrink Tubing, 1/4", Black, 48" Length, 3:1 Shrink Ratio

Product Specifications

• Manufacturer: 3M
• Manufacturer Part Number: 7000133614
• Product Name: 3M EPS300-1/4-48 Adhesive-Lined Heat Shrink Tubing
• Type: Adhesive-Lined Heat Shrink Tubing
• Category: Heat Shrink
• Nominal Size: 1/4 in
• Color: Black
• Length: 48 in
• Shrink Ratio: 3:1
• Material: Polyolefin
• Temperature Rating: -67°F to 230°F / -55°C to 110°C
• Shrink Temperature: 250°F / 121°C
• Expanded I.D.: 0.250 in
• Shrunk I.D.: 0.080 in
• Wall Type: Thin-Wall Flexible Tubing
• Construction: Integral Adhesive-Lined Construction
• Flame Retardant: Yes
• Standard: MIL-DTL-23053/4, Class 3
• Country Of Origin: USA
• Availability: 383 in Stock
• Standard Lead Time When No Stock: 15 Days
• Application: Electrical Insulation, Wire Protection, Moisture Sealing, Cable Repair and Strain Relief
• Full Technical Description: 3M EPS-300 Adhesive-Lined Heat Shrink Tubing; 1/4 Inch Nominal Size; 48 Inch Length; Black Polyolefin Construction; 3:1 Shrink Ratio; Expanded I.D. 0.250 Inch and Shrunk I.D. 0.080 Inch; Thin-Wall Flexible Tubing with Integral Adhesive Liner; Selectively Cross-Linked Heat-Shrinkable Outer Wall with High-Flow Inner Sealant Liner; Flame-Retardant Design; Rated -67°F to 230°F; Meets MIL-DTL-23053/4 Class 3
• Manufacturer Brand: 3M
• Sub Category: Adhesive-Lined Heat Shrink Tubing
• SKU Name: 3m eps-300 1/4 black adhesive heat shrink tubing

Resources

• Manufacturer Spec Sheet
