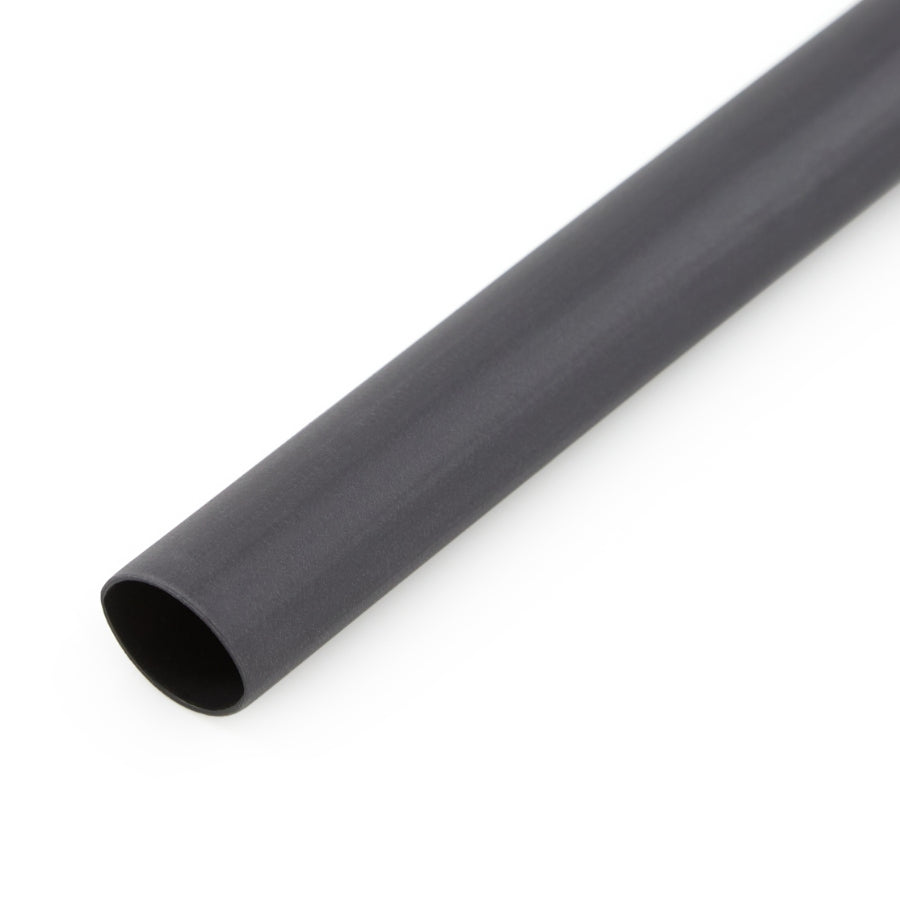

3M EPS300-1 1/2-48"-Black Adhesive-Lined Heat Shrink Tubing, 3:1, Black

Overview

3M EPS300-1 1/2-48"-Black Adhesive-Lined Heat Shrink Tubing, 3:1, Black

Product Specifications

• Mouser #: 5174-348112
• Manufacturer: 3M
• Manufacturer Brand: 3M Electronic Specialty
• Manufacturer Part Number: EPS300-1 1/2-48"-Black
• Series: EPS-300
• Family: EPS-300
• Product Category: Heat Shrink Tubing & Sleeves
• Product: Heat Shrink Tubings
• Product Type: Heat Shrink Tubing and Sleeves
• Type: Adhesive Lined
• Color: Black
• Material: Polyolefin
• Length: 1.219 m / 3.999 ft / 48 in
• Inside Diameter: 38.1 mm / 1.5 in
• Recovered Diameter: 19.05 mm / 0.75 in
• Shrink Ratio: 3:1
• Chemical Resistant: Yes
• Dielectric Strength: 700 V/mil
• Flammability Rating: UL 224
• Maximum Operating Temperature: +110°C
• Maximum Temperature: +110°C
• Minimum Operating Temperature: -55°C
• Minimum Shrink Temperature: +121°C
• Features: Thin-wall tubing offers advantages of integral adhesive-lined construction
• RoHS: Yes
• Unit Weight: 8.818490 oz
• Availability: 31 in Stock
• Factory Lead Time: 4 Weeks
• Application: Electrical Insulation, Cable Protection, Moisture Sealing, Wire Harnessing and Industrial Heat Shrink Repairs
• Category: Heat Shrink Tubing & Sleeves
• Full Technical Description: 3M EPS-300 Adhesive-Lined Heat Shrink Tubing; 1-1/2 Inch Inside Diameter; 48 Inch Length; Black Polyolefin Construction; 3:1 Shrink Ratio; Recovered Diameter 0.75 Inch; Thin-Wall Tubing with Integral Adhesive-Lined Construction; Chemical Resistant; 700 V/mil Dielectric Strength; UL 224 Flammability Rating; Operating Temperature Range -55°C to +110°C; Minimum Shrink Temperature +121°C
• Sub Category: Adhesive-Lined Heat Shrink Tubing
• SKU Name: 3m eps300 1-1/2 48 black adhesive heat shrink tubing

Resources

• Manufacturer Datasheet
