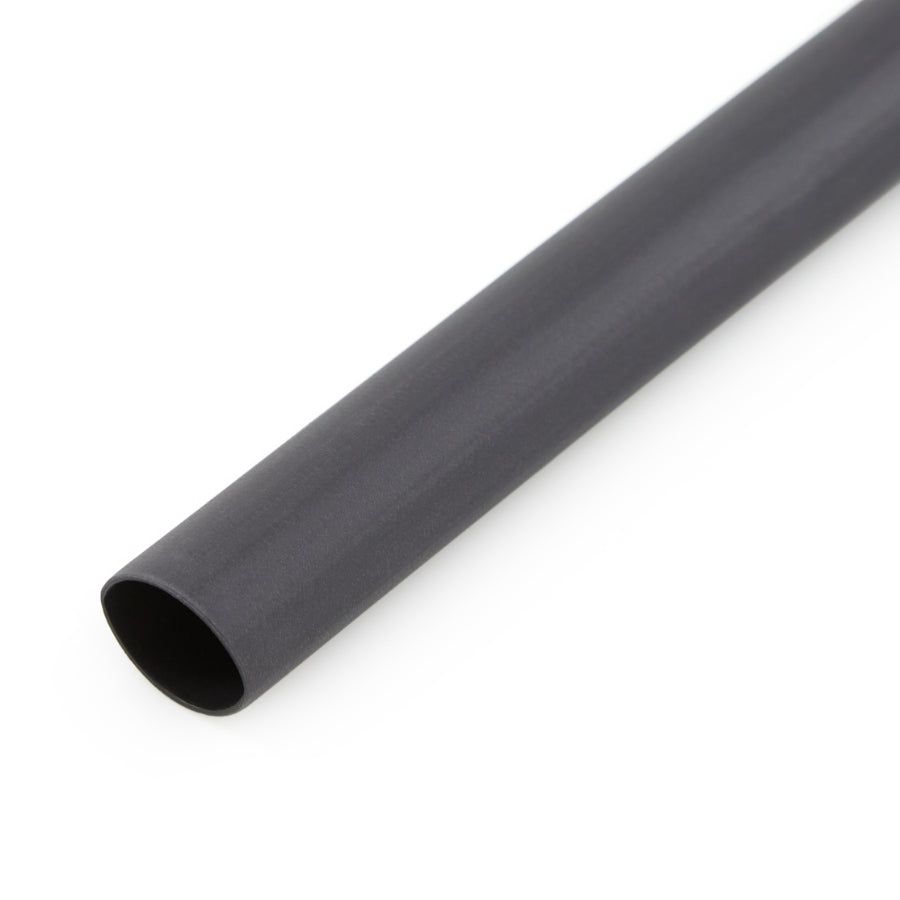

3M EPS300-3/4-48"-BLACK-5 PCS Heat Shrink Tubing, 3/4" x 48", Black

Overview

3M EPS300-3/4-48"-BLACK-5 PCS Heat Shrink Tubing, 3/4" x 48", Black

Product Specifications

• DigiKey Part Number: 3M161210-ND
• Manufacturer: 3M
• Manufacturer Product Number: EPS300-3/4-48"-BLACK-5 PCS
• Base Product Number: EPS-300
• Series: EPS-300
• Description: HEATSHRINK TUBING 3/4-48" 1=1PC
• Detailed Description: Heat Shrink Tubing, Flexible 0.750" / 19.05 mm, 3 to 1, Black, 4.00 ft / 1.22 m
• Category: Cables, Wires - Management
• Sub Category: Heat Shrink Tubing
• Product Type: Flexible Heat Shrink Tubing
• Type: Tubing, Flexible
• Material: Irradiated Polyolefin
• Color: Black
• Length: 4.00 ft / 1.22 m / 48 in
• Inner Diameter Supplied: 0.750 in / 19.05 mm
• Inner Diameter Recovered: 0.250 in / 6.35 mm
• Recovered Wall Thickness: 0.085 in / 2.16 mm
• Shrinkage Ratio: 3 to 1
• Shrink Temperature: 121°C
• Operating Temperature: -55°C to 110°C
• Storage Temperature: 50°F to 80°F / 10°C to 27°C
• Shelf Life: 120 Months
• Shelf Life Start: Date of Manufacture
• Features: Adhesive Lined; Corrosion Resistant; Flame Retardant; Fluid Resistant; Self Extinguishing; Water Resistant
• Packaging: Bulk
• Part Status: Active
• Manufacturer Standard Lead Time: 4 Weeks
• Application: Electrical Insulation, Cable Protection, Moisture Sealing, Wire Harnessing, Corrosion Protection and Industrial Heat Shrink Repairs
• Full Technical Description: 3M EPS-300 Flexible Adhesive-Lined Heat Shrink Tubing; 3/4 Inch Supplied Inner Diameter; 48 Inch Length; Black Irradiated Polyolefin Construction; 3 to 1 Shrinkage Ratio; Recovered Inner Diameter 0.250 Inch with 0.085 Inch Recovered Wall Thickness; Adhesive-Lined, Flame-Retardant, Water-Resistant, Fluid-Resistant and Self-Extinguishing Design; Operating Temperature Range -55°C to 110°C; Shrink Temperature 121°C
• Manufacturer Brand: 3M
• SKU Name: 3m eps300 3/4 48 black adhesive heat shrink tubing

Resources

• Manufacturer Datasheet
