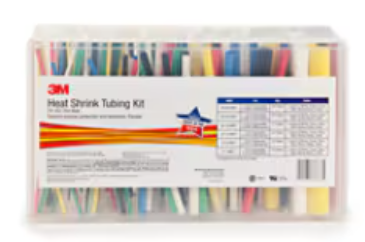

3M™ Heat Shrink Thin-Wall Tubing Kit, FP-301, Assorted Colors

Overview

3M™ Heat Shrink Thin-Wall Tubing Kit, FP-301, Assorted Colors

Product Specifications

• UPC: 00051135376775
• 3M ID: 7000031588
• Brand: 3M
• Manufacturer: 3M
• Series: FP-301
• Product Type: Heat Shrink Thin-Wall Tubing Kit
• Tubing Type: Single Wall, Thin Wall
• Assortment Kit: Yes
• Color: Assorted Colors
• Material: Flexible Polyolefin
• Shrink Ratio: 2:1
• Voltage Rating: 600 V
• Operating Temperature Range: -55°C to +135°C / -67°F to 275°F
• Maximum Operating Temperature: 135°C / 275°F Continuous
• Short-Term Temperature Resistance: Up to 300°C / 572°F
• Minimum Shrink Temperature: 100°C
• Elongation: 400%
• Tensile Strength: 2400 psi
• Overall Length: 48 in
• Flame Retardant: Yes, except clear
• Non-Corrosive: Yes
• UL Approval: Yes
• CSA Certified: Yes
• Mil Spec: AMS-DTL-23053/5, Class 1
• Standards Met: SAE-AMS-DTL-23053/5 Class 1; SAE-AMS-DTL-23053/5 Class 2 Clear; AMS-3636; AMS-3637; UL Recognized File E-39100; CSA LR38227
• Units Per Case: 133
• Application: Electrical Insulation, Cable Splices, Terminations, Wire Harness Covering, Wire Marking, Wire Bundling, Component Packaging and Fire-Resistant Covering
• Category: Heat Shrink Tubing
• Full Technical Description: 3M FP-301 Heat Shrink Thin-Wall Tubing Kit; Assorted Colours; Flexible Polyolefin Tubing with 2:1 Shrink Ratio; Rated for 600V Applications and 135°C Continuous Operation; Designed to Withstand Elevated Temperatures up to 300°C for Short Periods; Split Resistant, Mechanically Tough, Easily Marked and Resistant to Cold Flow; Suitable for Electrical Insulation, Wire Harnessing, Cable Splices, Terminations and Industrial or Military Applications
• Manufacturer Brand: 3M
• Sub Category: Thin-Wall Heat Shrink Tubing Kits
• SKU Name: 3m fp-301 assorted thin wall heat shrink tubing kit
