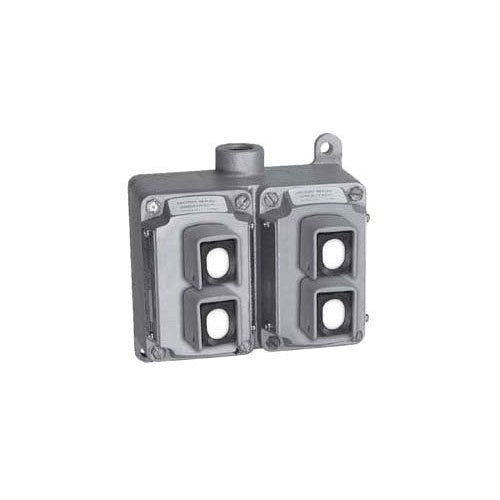

Appleton EDS2290 Explosion-Proof Pushbutton Station

Overview

Appleton EDS2290 Explosion-Proof Pushbutton Station

Product Specifications

• UPC: 78138169466
• Number Of Circuits: 4
• Contact Configuration: 4NO-4NC, UNIVERSAL
• Operator Type: FRONT OPERATED BUTTON
• Box Type: TWO GANG
• Hub Size: (1) 3/4 INCH
• Enclosure Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON
• Enclosure: CLASS I DIV 1 GROUP C D, CLASS I DIV 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7B/7C/7D/9E/9F/9G
• Catalog Number: EDS2290
• Brand Name: Contender[T], Appleton[R]
• Model: EDS
• Type: DEAD END
• Constructional Feature: DUST IGNITION PROOF, EXPLOSION PROOF
• Voltage Rating: 600 VAC
• Current Rating: 10 AMPERE
• Number Of Elements: 4
• Catalog Description: EXPLOSIONPROOF PUSHBUTTON CONTROL STATION, TYPE DEAD END, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, LEGEND START/STOP, NUMBER OF ELEMENTS 4, NUMBER OF CIRCUITS 4, CONTACT CONFIGURATION 4NO-4NC, MOMENTARY, UNIVERSAL, OPERATOR TYPE FRONT OPERATED BUTTON, BOX TYPE TWO GANG, HUB SIZE (1) 3/4 INCH, ENCLOSURE MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON BODY/COVER, ENCLOSURE CLASS I DIV 1 GROUP C D, CLASS I DIV 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7CD/9EFG, APPROVAL UL 508/698/1203, APPLICATION HAZARDOUS LOCATION
• Category: Control Station Complete Assemblies
• Full Technical Description: Dead End Type; Universal Contact Configuration; 3/4 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Enclosure Material; UL 508/698/1203, UL (Canada and Us), CSA C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 10 Amp Current Rating; Start/Stop Legend; Explosionproof, Dust Ignitionproof; 4 Circuit(S); 2-Gang Box Type; CONTENDER[TM] Brand; Operation Type Momentary; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry; Applicab
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381694667
• SKU Name: app eds2290
