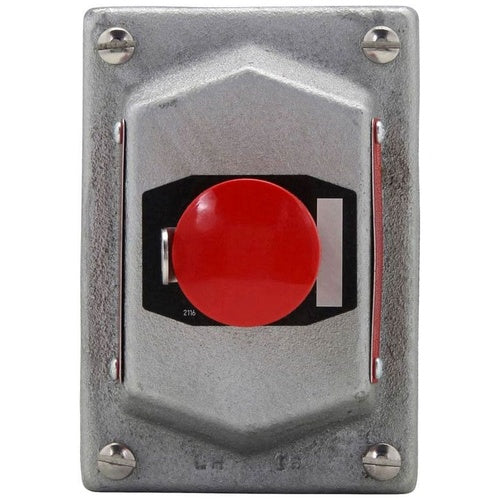

Crouse-Hinds DSD918-S769 Sub Assembly

Overview

Crouse-Hinds DSD918-S769 Sub Assembly

Product Specifications

• Catalog Description: EATON CROUSE-HINDS SERIES DSD FRONT OPERATED PUSHBUTTON COVER AND DEVICE SUB-ASSEMBLY, 10A, RED, FERALOY IRON ALLOY, 1 CIRCUIT UNIVERSAL, 1 BUTTON, MAINTAINED RED EMERGENCY "STOP" BUTTON WITH LOCKOUT, FACTORY SEALED, 600 VAC
• Full Technical Description: Electrogalvanized and Aluminum Acrylic Painted Feraloy Iron Alloy Material; Eds/Efs Series Control Station Used on; 1NO-1NC Contact Configuration; 600 Volt AC 10 Amp Contact Rating; UL 1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G Enclosure; Explosionproof, Dust Ignitionproof, Rain Tight; 1 Circuit(S); Red Cap/Lens Color; 1 Pushbutton(S); Includes Lockout; DSD Model
• Manufacturer: EATON CROUSE-HINDS INDUSTRIAL
• Sub Category: Explosionproof Pushbutton Cover
• Unspsc: 39121302
• UPC 12 Digit: 782274020976
• SKU Name: crsh dsd918s769

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
