Woodhead 1303000A01F060 3-Pole Female Cordset

Overview

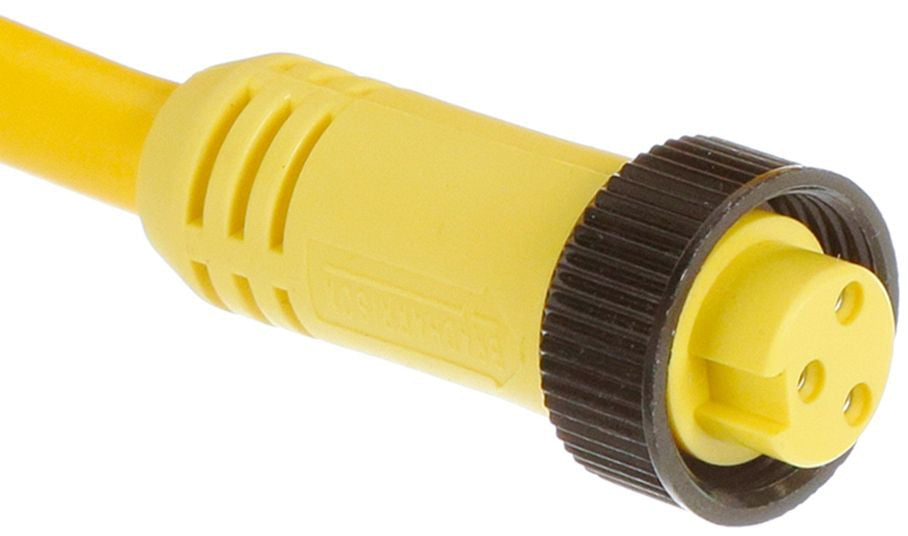

Woodhead 1303000A01F060 3-Pole Female Straight Cordset

Product Specification

• Catalog Description: MINI-CHANGE A-SIZE SINGLE-ENDED CORDSET, 3 POLES, FEMALE STRAIGHT TO PIGTAIL, 16 AWG, PVC CABLE, 6 FT LENGTH
• Category: Plugs & Receptacles
• Full Technical Description: Single Ended Female Cordset; 3 Poles; Straight Orientation; Yellow Color; 6 Foot Length; 16 AWG STOOW PVC Jacket Cable; Gold Nickel Plated Brass Contact Material; Molded PVC Body and PVC Connector Face; 600 Volt AC/DC Voltage Rating; 13 Amp Current Rating; IP67 Environmental Rating; Single Keyway Type; Wire Code 1-Green Ground, 2-Black, 3-White; Suitable for Hydraulic Valves, Limit Switches, Photoelectric Sensors, Proximity Sensors, Conveyors, Packaging, and Material Handling Systems; UL and CSA Approved
• Made In Usa:
• Manufacturer: Woodhead
• Manufacturer Brand: Electrical/Industrial/Network/Passive
• Sub Category: Quick Connect Cable Assembly
• Unspsc: 39121413
• UPC 12 Digit: 781725537247
• SKU Name: 1303000A01F060

Resources

Manufacturer Specification Sheet

Product Specification Sheet
