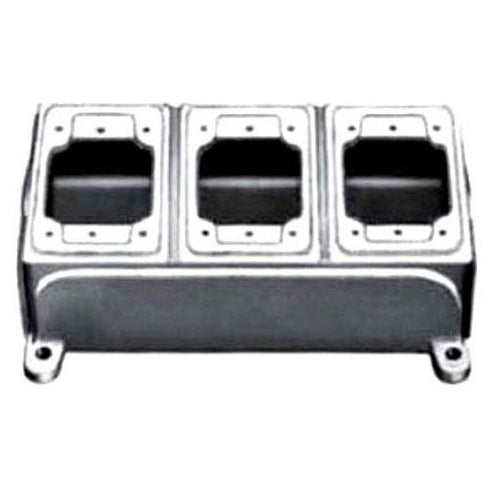

Appleton FDB-3L 3-Gang Malleable FDb Box w/Lugs

Overview

Appleton FDB-3L 3-Gang Malleable FDb Box w/Lugs

Product Specifications

• UPC: 78138133267
• Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Shape: Deep
• Configuration Type: FDB
• Mounting Hardware: (4) Lugs
• Approval: UL 514A
• Additional Information: Application Accommodate Wiring Devices, Serve as Pull Box for Conductors, Indoor/Outdoor
• Catalog Number: FDB-3L
• Brand Name: Unilet[R]
• Model: FDB
• Height: 5 Inch
• Width: 10.63 Inch
• Depth: 2.69 Inch
• Capacity: 98 Cu Inch
• Number Of Gangs: 3
• Catalog Description: UNILETS FDB DEEP DEPTH 3-GANG CAST DEVICE BOX, MATERIAL: MALLEABLE IRON, MOUNTING: LUGS, KNOCKOUTS: NO, HEIGHT: 5 IN, WIDTH: 10.19 IN, DEPTH: 2.69 IN, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), STANDARD: UL 514 A, UL FILE NUMBER E2527, NEMA FB-1, FOR USE WITH THREADED METAL CONDUIT AND IMC
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 10.63 Inch; 5 Inch; 2.69 Inch; Deep Shape; 3 Gang(S); UL 514A Approval; 98 Cubic Inch Capacity; (4) Lug Mounting Hardware; Fdb Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FDB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cast Device Box
• Unspsc: 39121315
• UPC 12 Digit: 781381332675
• SKU Name: app fdb3l

Resources

• Manufacturer Spec Sheet
