Appleton fdct1100

Overview

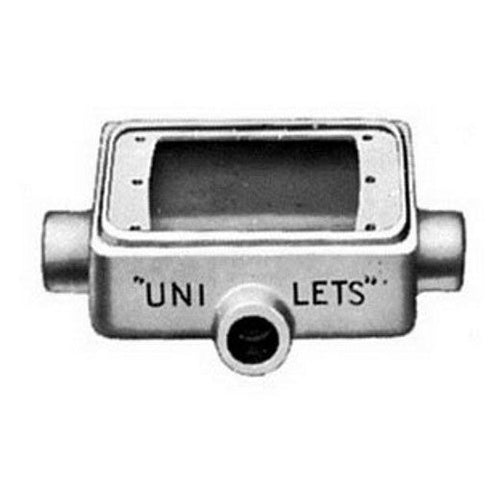

Appleton FDCT1100 1-Gang Malleable FDCT Box

Product Specifications

• Part Number: FDCT1100
• UPC / GTIN: 78138133700
• UPC: 78138133700
• Hub Location: (1) Side, (1) Each End
• Hub Size: 1 Inch
• Material: Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron
• Shape: Deep
• Configuration Type: FDCT
• Mounting Hardware: Not Included
• Approval: UL 514A
• Additional Information: APPLICABLE STANDARD FEDERAL SPECIFICATION W-C-586B; CONDUIT TYPE IMC, THREADED RIGID METAL; ENVIRONMENTAL CONDITIONS CORROSION RESISTANT; SERVICE TYPE INDOOR, OUTDOOR
• Brand Name: Unilet[R]
• Height: 6.31 Inch
• Width: 3.5 Inch
• Depth: 2.69 Inch
• Capacity: 25 Cubic Inch
• Number of Gangs: 1
• Number of Hubs: 3
• CATALOG DESCRIPTION: UNILETS FDCT DEEP DEPTH 1-GANG CAST DEVICE BOX, NUMBER OF OUTLET: 3, MATERIAL: MALLEABLE IRON, SIZE: 1 IN, CABLE ENTRY: (3) 1 IN HUB, CUBIC CAPACITY: 25 CU-IN, KNOCKOUTS: NO, HEIGHT: 4.56 IN, WIDTH: 2.81 IN, DEPTH: 2.69 IN, FINISH: TRIPL
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 2.81 Inch; 6.31 Inch; 2.69 Inch; Deep Shape; 1 Inch Hub Size; 3 Hub(S); 1 Gang(S); UL 514A Approval; 25 Cubic Inch Capacity; Not Included Mounting Hardware; Fdct Configuration Type; Includes Stainless Steel Screw; Used on Imc/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard Nec/Cec, NEMA FB-1; FD Model
• Manufacturer: Appleton Electric
• Product Description: Appleton FDCT1100 1-Gang Malleable FDCT Box
• UNSPSC: 39121315
• UPC 12 Digit: 781381337007
