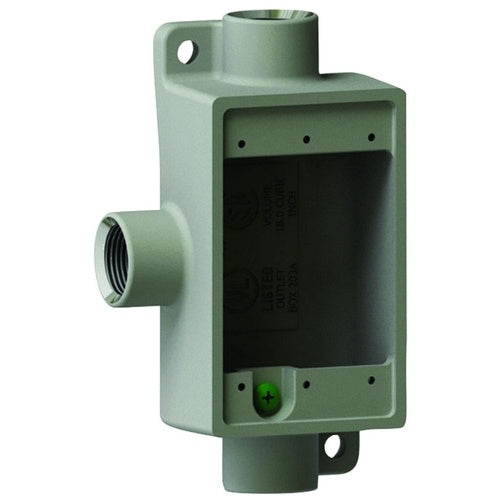

Killark FSCT-2 Fsct" 3/4" Aluminum Shallow Dev Boxx

Overview

Killark FSCT-2 Fsct" 3/4" Aluminum Shallow Dev Boxx

Product Specifications

• UPC: 78393619027
• Hub Location: (1) Side, (1) Each End
• Hub Size: 3/4 Inch
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Shape: Shallow
• Configuration Type: FSCT
• Approval: UL 514A, CSA C22.2, FS W-C-586D
• Additional Information: Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw
• Catalog Number: FSCT-2
• Model: FSCT
• Height: 4-5/8 Inch
• Width: 2-7/8 Inch
• Depth: 2 Inch
• Capacity: 18 Cu Inch
• Number Of Gangs: 1
• Number Of Hubs: 3
• Catalog Description: 3/4"ALUMINUM, FSCT TYPE SHALLOW DEVICE BOX
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 2-7/8 Inch; 4-5/8 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 3 Hub(S); 1 Gang(S); UL 514A, CSA C22.2, FS W-C-586D Approval; 18 Cu Inch Capacity; (1) Side, (1) Each End Hub Location; Fsct Configuration Type; Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw; FSCT Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39121308
• UPC 12 Digit: 783936190273
• SKU Name: klrk fsct2
